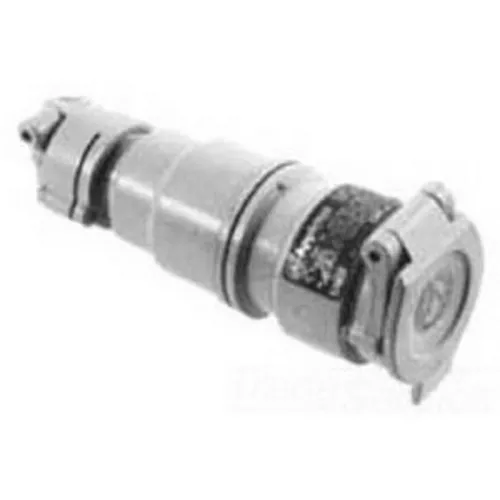

U-Line ECCL/ECC Factory Sealed 20 Amp Cable Connectors provide an easy way to extend the reach of your power supply to areas where a standard or U-Line™ receptacle may not be available. A gasket in the throat of the cable connector seals around the U-Line plug powering your equipment, protecting against moisture and combustible dusts. A twist with an audible click locks the plug in place and energizes the connector. When not in use, a spring cover seals the connector against the environmental elements.FEATURES:- Gasketed spring door cover snaps shut to protect against moisture and combustible dust- Gasket in receptacle throat seals around plug for protection against environment- Interior switch cylinder has neoprene O-ring at each end to seal out dust and moisture- 2 bushings to accommodate different cable sizes
Specifications
| Brand Name | Appleton | Sub Brand | U-Line™ |
| Item Name | Cable Connector with Flip Cover | Voltage Rating | 250 VAC |
| Amperage Rating | 20 A | Number of Poles | 3 |
| Type | Cable Connector With Flip Cover | Number of Wires | 2 |
| Material | Copper-Free Aluminum | Color/Finish | Epoxy Powder Coated |
| Dimensions | 7/16 – 5/8 in dia | UPC | 781381440783 |
