Description:

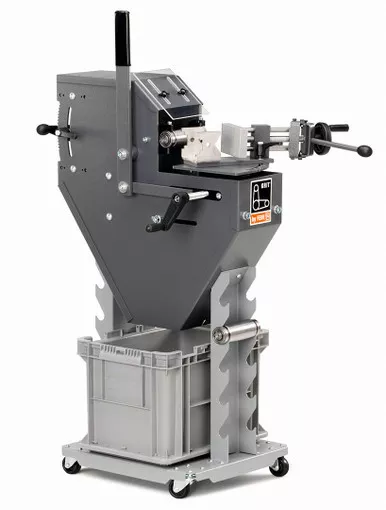

- Radius grinding unit
- GXR
- Radius grinding module for exact-fit grinding of pipe, profiles and flat materials
Benefits:
- For precisely cutting radii (with a diameter from 5/8 [16] to 3-1/2 [90] in[mm]) on pipes and profiles.
- Contact rollers in standard sizes are available as options
- Optional length stop for production applications
- Integrated depth stop
- Optional combination with GX 75 (2H) belt grinders
- Independent angle settings possible up to 90?
Technical Data:
- Pipes up to : 3/4 [16]- 3 [75]in[mm]
- Belt dimension: 3 [75]x 88-1/2 [2,250]in[mm]
- Max. dimension of profile/flat material: 3 [75]x 3 [75]in[mm]
- Weight: 119.05 [54] lbs[kg]
Includes:
- 1 Contact roller 1-11/16 in [42.4 mm] dia.
- 1 Contact roller 1-7/8 in [48.3 mm] dia.
- 1 Grinding belt 75 x 2250 mm (36 grit R)
