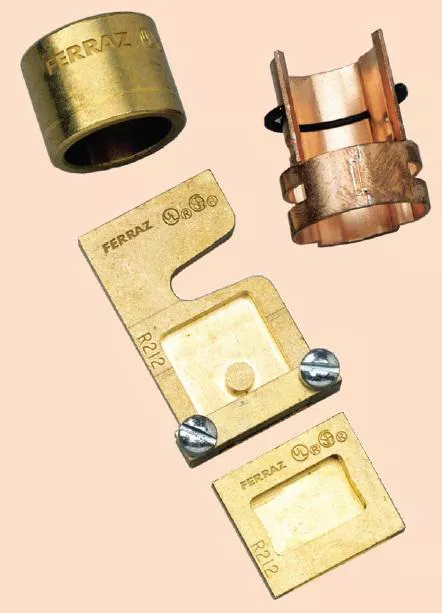

Mersen fuse reducers allow the use of lower rated fuses in existing equipment having clips with higher ampere ratings. The use of closer rated time-delay fuses can improve circuit protection. For example, renewable or one-time fuses feeding a motor can be replaced with fuses sized closer to the motor nameplate current. Non-rejection reducers will allow Class H, K or R fuses to fit Class H or K clips. Rejection-type reducers will allow only Class R fuses to fit Class R clips or only Class J fuses to fit Class J clips. Class J fuse reducers are not for bolt on applications.
Specifications
| Brand Name | Ferraz Shawmut | Item Name | Fuse Reducer |
| Type | Fuse Reducers | Voltage Rating | 600 VAC |
| Reduced Fuse Amperage Rating | 200 A | Class | R |
| Fuse Clip Amperage Rating | 400 A | Standards | UL Listed Guide No. IZZR, CSA Certified, 600 V Class J – UL Listed Guide No. IZZR, CSA Certified 30-600A |
| Application | Fits Class R Clips | UPC | 782001752422 |
