Mortises or grooves with a perfect top surface, or through-cuts in thin double sided veneers and laminates
Shorter up shear length allows bit to be used for grooves and mortises without chipping top surface.
- Also ideal for through cuts in double sided sheets that are 5/8″ thick or less.
- Combination of up and down shear flutes eliminates chipping on both sides of double sided panels.
- Routs melamine, veneer plywood and other double sided materials, as well as hardwoods and softwoods.
- Use on CNC and other automatic routers as well as hand-held and table-mounted portable routers.
- Double flute spirals are for extra clean cuts at faster feed rates.

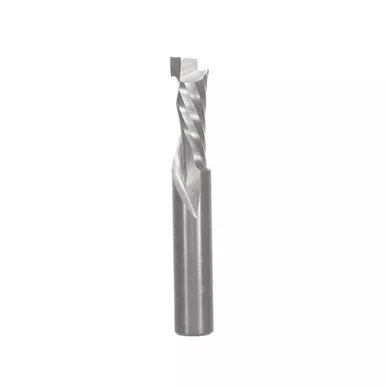

- 1/2″ (Dia.) One Flute Mortise Compression Bit with 1/2″ Shank
- Machine Use: Router
- Materials: Wood
| Overall Diameter | 1/2” |
| Carbide Height | 1-3/8” |
| Shank Diameter | 1/2” |
| Overall Length | 3-1/2” |
