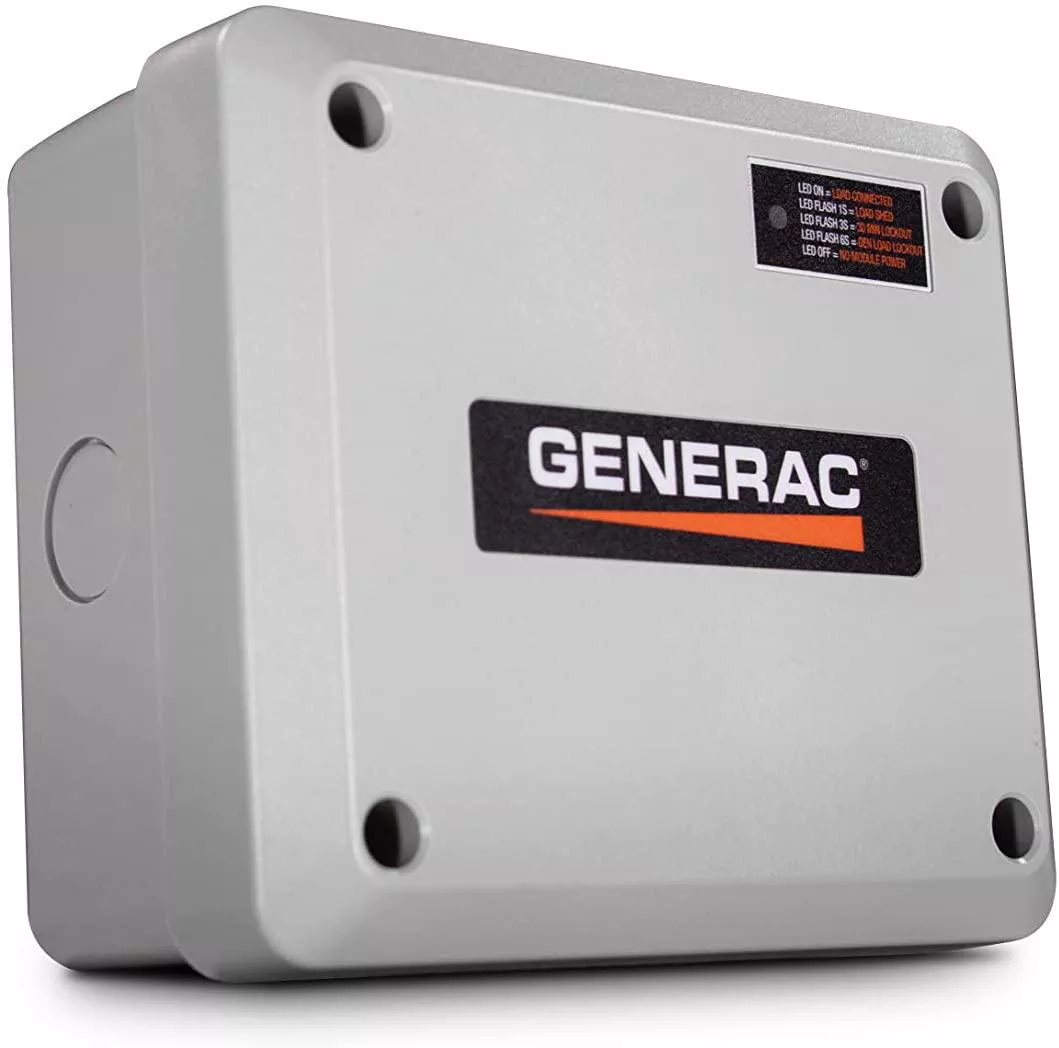

Generac Power Systems Smart Management Modules allow for more coverage with a smaller generator through smart load management. Get more coverage with less when you use Generac’s power management option.
Wire-free technology – increased afford ability with wireless modules, lowering installation cost and providing the best whole-house generator option to fit any budget
Prioritize loads – power items that are most important during an outage through customizable load priority selection and up to 8 modules per system can be used
Lock-out feature – Smart Management Modules feature a lock-out system, which permits blocking of specific loads only when using generator power, allowing for the important loads to be powered more often
Externally visible L.E.D. status – view load status without opening the electrical box for convenient management of power during an outage
Maximum compatibility – Smart Management Modules work with any home standby generator for flexibility with any standby solution
Specifications
Brand Name
Generac Power Systems
Item Name
Smart Management Module
Voltage Rating
230 VAC
Amperage Rating
50 A Resistive, 40 A F/L Inductive, 180 A Locked Rotor
Frequency Rating
50/60 Hz
Dimensions
7.06 in W x 3.7 in D x 6.17 in H
UPC
696471070002
