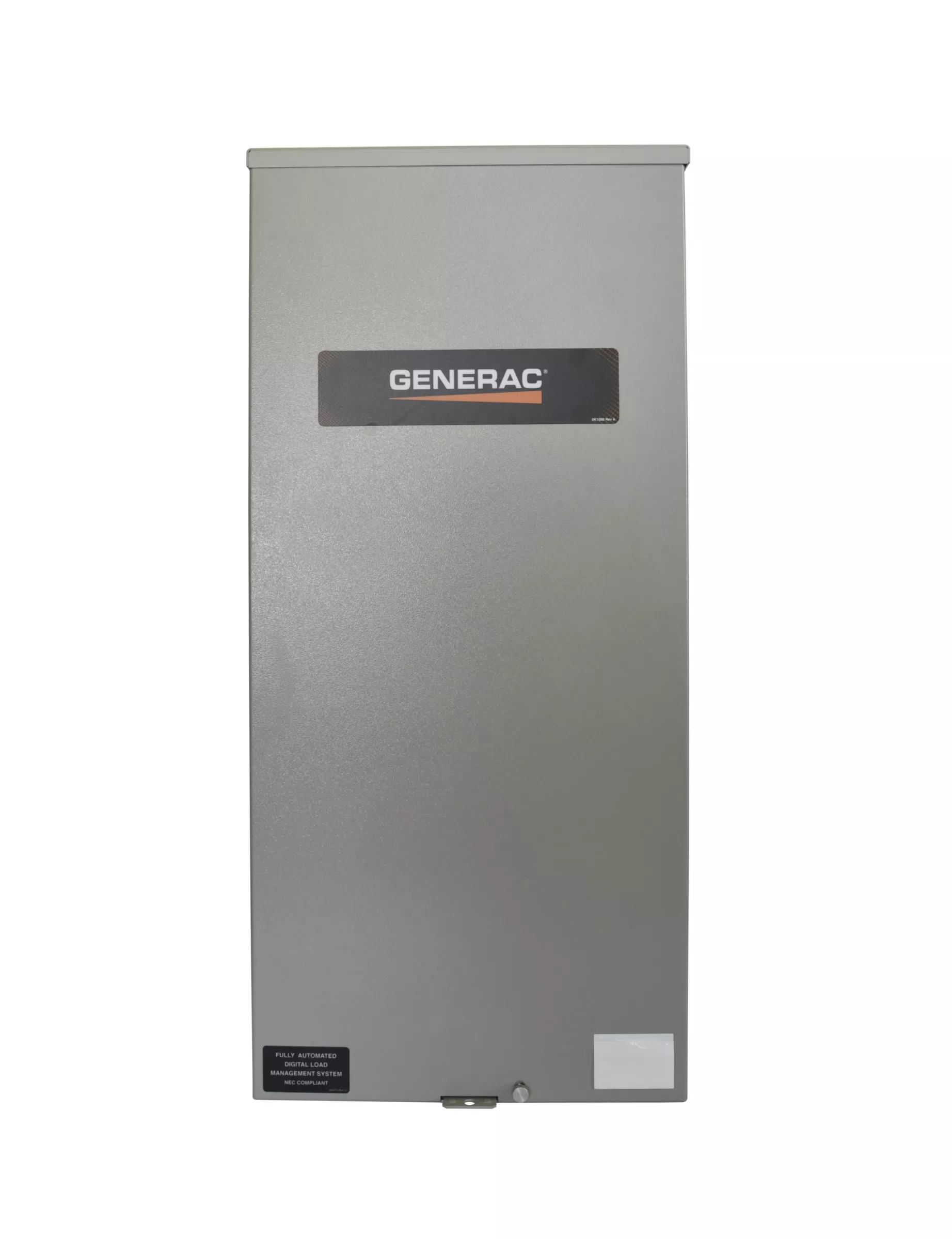

This automatic transfer switch is used for transferring electrical load from a utility (normal) power source to a generator (standby) power source. Transfer of electrical loads occurs automatically when the utility power source has failed or is substantially reduced and the generator source voltage and frequency have reached an acceptable level. The transfer switch prevents electrical feedback between two different power sources (such as the utility and generator sources) and, for that reason, codes require it in all standby electric system installations. The transfer switch consists of a transfer mechanism, utility service disconnect circuit breaker and a smart A/C module incorporating fuses and two terminal blocks for transfer switch connections.
Through the use of digital power technology, Generac’s singe-phase service rated transfer switch has the ability to manage 4 individual HVAC loads with no additional hardware
Designed for use with single-phase generators that utilize an Evolution or Nexus Controller
Aluminum NEMA/UL Type 3R(indoor-outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection
Gain even more flexibility when used in tandem with Smart Management Modules
Specifications
Brand Name
Generac Power Systems
Item Name
Transfer Switch
Type
Automatic
Power Rating
24000 W
Voltage Rating
120/240 V
Amperage Rating
100 A
Phase
1
Number of Poles
2
Wire Size
1/0-14 AWG
Frequency Rating
60 Hz
Dimensions
14.6 in W x 7.09 in D x 20 in H
Housing Material
Aluminum
Color
Bisque
NEMA Rating
NEMA 3R
For Use With
Single Phase Generators that Utilize an Evolution or Nexus Controller
Standards
cUL/UL Listed
UPC
696471074819
