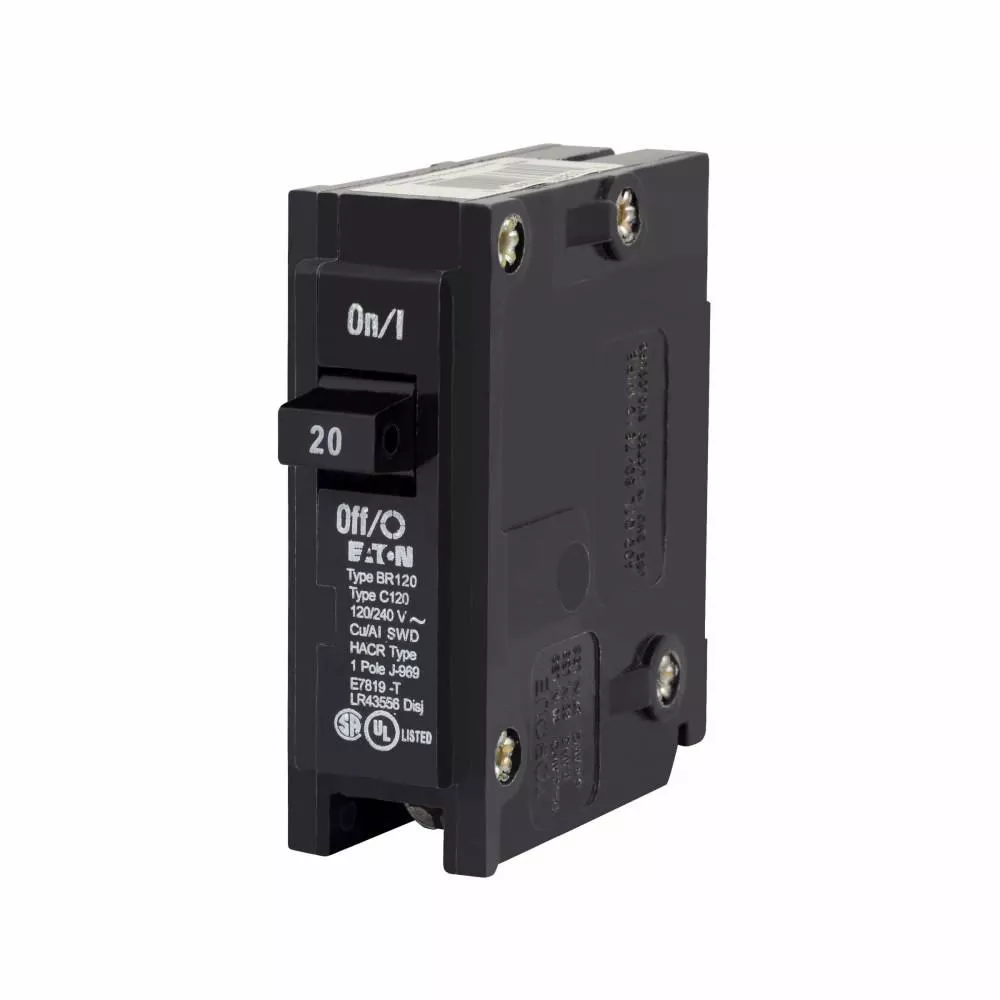

Circuit breaker, plug-in type.
Specifications
| Brand Name | Cutler Hammer | Item Name | Arc Fault Circuit Interrupter |
| Series | BR | Number of Poles | 1 |
| Interrupt Rating | 10 kA | Amperage Rating | 20 A |
| Voltage Rating | 120/240 VAC | Terminal Connection | Box Lug |
| Mounting Type | Plug-On | Phase | 1 |
| Conductor Size | 14-4 AWG Copper and Aluminum | Trip Type | Thermal Magnetic |
| Temperature Rating | 60 – 75 °F | Dimensions | 3 in L x 1 in W x 3 in H |
| For Use With | For Type BR Loadcenters | Standards | UL489, Federal Specification W-C375 |
