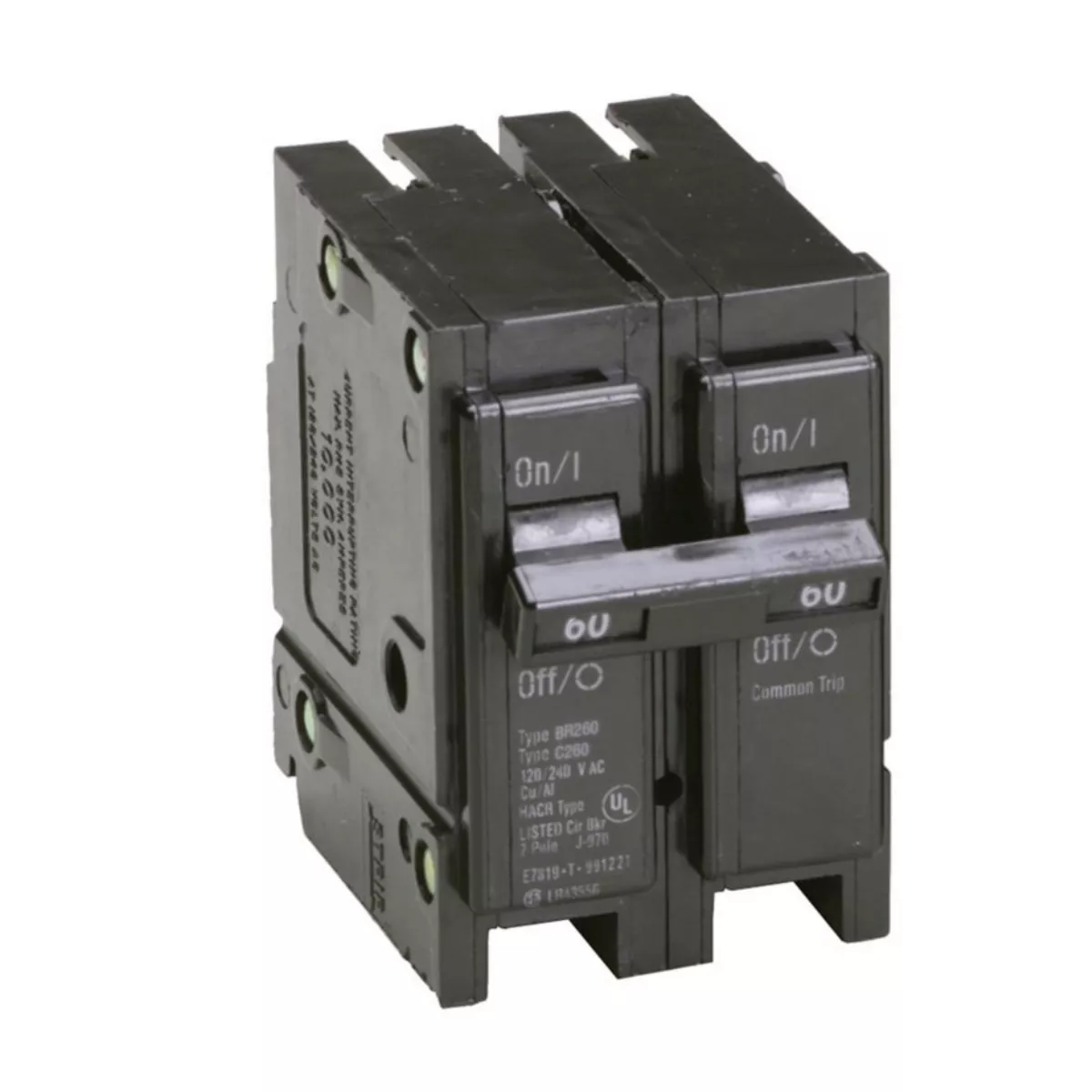

Circuit breaker CUTLER-HAMMER clip-on 2 poles 60A 240V 10KA.
Specifications
| Brand Name | Cutler Hammer | Item Name | Arc Fault Circuit Interrupter |
| Type | Common Trip | Series | BR |
| Number of Poles | 2 | Interrupt Rating | 10 kA |
| Amperage Rating | 60 A | Voltage Rating | 120/240 VAC |
| Terminal Connection | Box Lug | Mounting Type | Plug-On |
| Phase | 1 | Conductor Size | 4-1/0 AWG Copper and Aluminum |
| Trip Type | Thermal Magnetic | Temperature Rating | 60 – 75 °F |
| Dimensions | 3 in L x 2 in W x 3 in H | For Use With | For Type BR Loadcenters |
| Standards | UL 489, Federal Specification W-C375 |
