Product Description

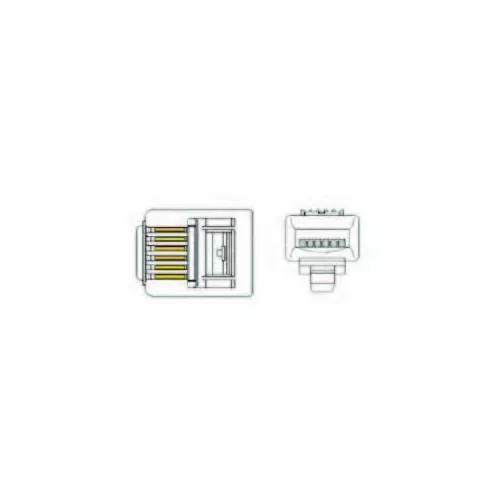

GENERAL MACHINE PRODUCTS24065 PLUG MODULAR 8X8 CAT 6100PKModular PlugsThese rugged, dependable plugs are specially manufactured to exactingGENERAL MACHINE PRODUCTSstandards for highest possible quality and performance.Each UL-listed plug is molded from fire-resistant, translucent polycarbonate that’s either clear or color tinted for fast application identificationThe phosphor-bronze contacts are plated with 50 micro inches (2 microns) of pure gold, then polished to a high luster. This is the highest gold content currently available in modular plugs.Note: High gold content in a modular plug is key to corrosion resistance.The gold, extra-conductive, corrosion-resistant mating surface helps minimize contact abrasion during insertion and removalFor Tinsel/Stranded Cordage: Insulated conductor diameter: .038 in. (.96 mm) Clear Plugs, Weight: 1 lb. (454 g)Plug Ordering Information (Stranded Cordage) P/NConfiguration170744-Contact x 4-position (4 x 4) handset plugs 100/pkg.170782-Contact x 6-position (2 x 6) RJ11 line cord plugs 100/pkg.170754-Contact x 6-position (4 x 6) RJ11 line cord plugs 100/pkg.170766-Contact x 6-position (6 x 6) RJ11 line cord plugs 100/pkg.170778-Contact x 8-position (8 x 8) RJ45 non-keyed line cord plugs 100/pkg.170438-Contact x 8-position (8 x 8) RJ45 keyed line cord plugs 100/pkg.2512510-Contact x 10-position (10 x 10) RJ45 keyed left line cord plugs 25/pkg.2512610-Contact x 10-position (10 x 10) RJ45 keyed right line cord plugs 25/pkg.2512710-Contact x 10-position (10 x 10) RJ45 non-keyed line cord plugs 25/pkg.——————————————————————————–For Solid Wire: Insulated conductor diameter: .038 in. (.96 mm) Grey Plugs, 100/pkg. Weight: 1 lb. (454 g)24061 3-Pair 22/24 AWG RJ11 plugs24062 4-Pair 22/24 AWG RJ45 plugsFor D Inside Wire & Plenum: Insulated conductor diameter: .033 in. (.84 mm) Blue Plugs, 100/pkg. Weight: 1 lb. (454 g)17188 4-Pair 24 AWG RJ45 plugsFor Shielded Twisted Pair (STP): Insulated conductor diameter: .038 in. (.96 mm) Clear/Metallic Plugs, 25/pkg. Weight: 4 oz. (113g)24042 4-Pair RJ45 STP plugs (CAT 5, 5e or 6) (use with S8 die)For Category 5, 5e & 6 Unshielded Twisted Pair (UTP): Insulated conductor diameter .042 in. (1.06 mm) Clear Plugs, 100/pkg. Weight: 1 lb. (454 g)24065 8-Contact Cat. 6 plug with separate conductor alignment bar for precise wire loading (use with B8 die)For DEC Data Cable: Insulated conductor diameter: .040 in. (1.00 mm) Clear Plugs, 100/pkg. Weight: 1 lb. (454 g)17090 6-Contact x 6-position MMJ plug
