Product Description

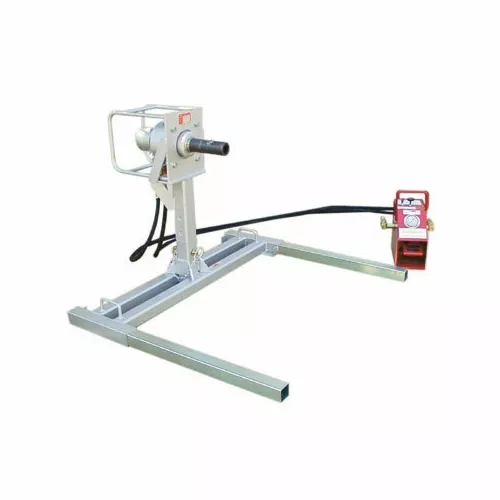

GENERAL MACHINE PRODUCTS 31116 STAND HYDRAULIC PULLER NEW31116 Self-Support Frame 93 lbs. (42 kgs)The Hydraulically Limited Cable Puller is designed to offer exceptional value while providing critical speed control and overload protection. It is simple to set up and easy to operate. Our Cable Puller has all of the features contractors demand, plusGENERAL MACHINE PRODUCTSquality and durability you can rely on . . . year after year.Standard Features:Adjustable pull control, up to 1000 lbs. (453 kg) maximum on a 40 in. (101 cm) diameter capstanSpeeds up to 425 ft/min @ 15 gpm flowControl panel with pressure gauge, pressure adjustment knob and directional foot control valve1/2 in. (12.7 mm) non-spill quick-disconnect fittings for 2500 psi maximum hydraulic source inputOptions:Three versatile set up options are available: Self-Support, Vehicle Receiver Mount and Socket MountSelf Support FrameP/N 31116Vehicle Receiver Mountand support Jack P/N 31219Portable Hydraulic Power Source that provides 10 gpm @ 2000 psi with 20 feet (6 m) of hydraulic hose.When you need reliable power to drive our Hydraulically Limited Cable Puller, the Stanley Hydraulic Power Pack has it. This portable power source pumps out 10 gpm @ 2000 psi to give you the muscle you need for the longest pulls. Comes with 20 feet (610 cm) of 1/2 in. (12.7 mm) hydraulic hose. P/N 7048763 Portable Hydraulic Power SourceOrdering Information: P/N Description Weight——————————————————————————–70483Hydraulically Limited Cable Puller Motor with Self-Support Frame, Foot Control Valve and (2) hydraulic hoses. 293 lbs. (133 kgs) 70484 Hydraulically Limited Cable Puller Motor with Vehicle Receiver Mount, Support Jack, Foot Control Valve and (2) hydraulic hoses. 248 lbs. (113 kgs)70486 Hydraulically Limited Cable Puller Motor with Foot Control Valve and (2) hydraulic hoses for 2 1/2 in. Square Socket Mount. 200 lbs. (91 kgs)70487 Stanley Hydraulic Power Unit with (2) hydraulic hoses, 1/2 in. dia. x 20 ft. 298 lbs. (135 kgs)31115 Hydraulic Motor Assembly 125 lbs. (57 kgs)31116 Self-Support Frame 93 lbs. (42 kgs)31117 Foot Control Valve 54 lbs. (25 kgs)31219 Vehicle Receiver Mount wIth Support Jack (for 2 in. receiver) 47 Lbs. (22 kgs)31210 Support Jack (replacement for above) 14 lbs. (6 kgs)30901 Hydraulic hoses (2), 1/2 in. dia. x 20 ft. 21 lbs. (10 kgs)
