Product Description

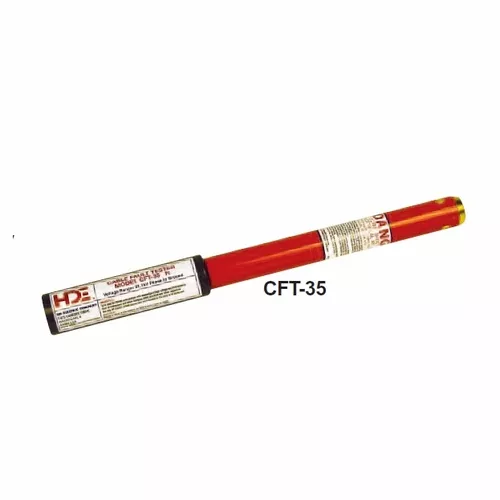

GREENLEECFT-35 CABLE FAULT TESTER PROBE, 35KV 52087362 / 783310555780GREENLEECFT-35 CABLE FAULT TESTER PROBE, 35KV 52087362 / 783310555780Cable Fault Tester Probe, 35KVCable Fault Tester for Use up to 35kV System Voltages (21kV Phase-to-Ground)The CFT-35 is for use only with two stick voltmeters for testing leakagecurrent in underground primary voltage cables.The CFT-35 can be used on underground cables with grounded neutrals with a maximum line-to-ground voltage of 21.1kV or maximum line-to-line voltage of 36.6kV. Operation at higher voltages may damage the CFT-35 and provide erroneous test results.The CFT-35 is used with a voltmeter/phaser for testing installed or repaired underground cable prior to energizing it. Only cable with extruded dielectric such as rubber or polyethylene can be tested with the CFT-35. Using the CFT-35 on paper insulated cable may provide erroneous test results caused by higher leakage currents typical for this type of cable.SpecificationsSub BrandHDEApplicationCable Fault TestingModelCFT-35Voltage Rating35kVTip MaterialBrass
