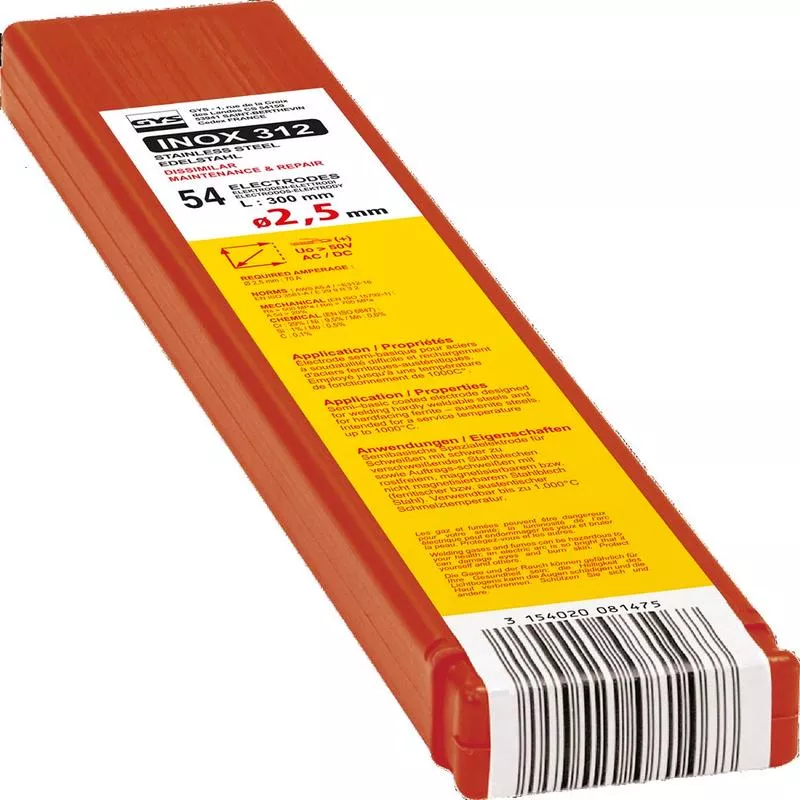

The GYS 081475 semi-basic coated electrode designed for the welding and reinforcing of ferriticaustenitic steels and for steels with a difficult weldability.
It has excellent mechanical properties and is highly resistant to high temperature cracks. It is suitable for many applications and recommended for repairs and maintenance.
- EN 1600 / ISO 3581-A: E 29 9 R 2.
- AWS A 5.4: E 312-16.
- Universal use for repairs and maintenance.
- Applications: carbon steel, galvanised steel, tool steel, manganese steel &use on dissimilar steel.
- Benefits: soft arc, the weld bead aspect, easy slag removal, high resistance to cracks.
Specification:
Positions and polarity:
- Ignition from 50V – Direct current.
- Electrode polarity (+).
Chemical properties:
- C %: 0.10.
- Mn %: 1.20.
- Si %: 0.20.
- S %: 0.015.
- Cu %: 0.05.
- Ni %: 10.00
- Cr %: 30.00.
- Mo %: 0.10.
Mechanical properties:
- Rs: 450 MPa
- Rm: 680 MPa
- A 5 d: 25%
- KV 0 C: 60 J.
