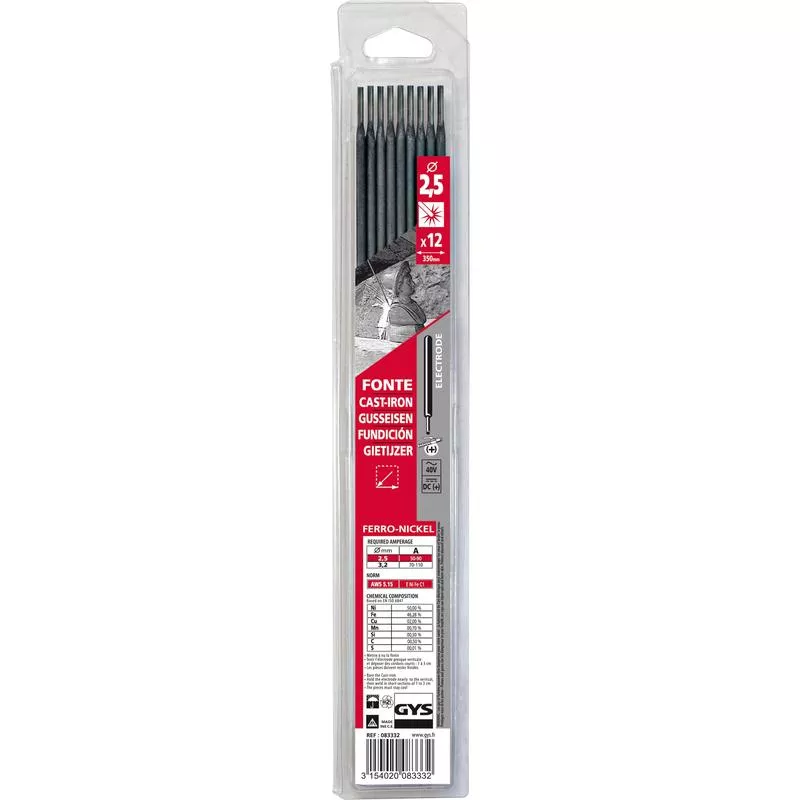

The GYS 083332 graphite-basic coated electrode with a high nickel concentration percentage, designed for cast iron repairs. It has excellent mechanical properties and is highly resistant to cracks. It is recommended for cast iron/steel & dissimilar assemblies.
Classification:
- EN ISO 1071: EC NiFe-Cl.
- AWS A 5.15: E Ni Fe Cl 3.
- DIN 8573: E NiFe 1 BG 13.
Applications:
- Welding and reinforcing cast iron, cast iron, modular cast iron and cast-iron steel assemblies.
- Crankcase.
- Cylinder head.
- Engine block.
- Pump casing.
- Gear wheel.
Benefits:
- Homogeneous ferronickel alloy, very resistant to cracks.
- Excellent performance on old cast iron.
- High mechanical specifications.
Position and polarity:
- Ignition from 40V – Direct current.
- Electrode polarity (+).
Specification:
Chemical Properties:
- C%: 1.00.
- Mn%: <1.00.
- Si %: <2.00.
- Ni%: 56.00.
- Fe%: base.
Mechanical Properties:
- Re: 390.
- Rm: 550.
Buy GYS 083332 12 Cast Iron Electrodes – 2.5 (Blister) online now from DW Toolshop, one of the UK and Irelands largest tool shops.
