Product Description

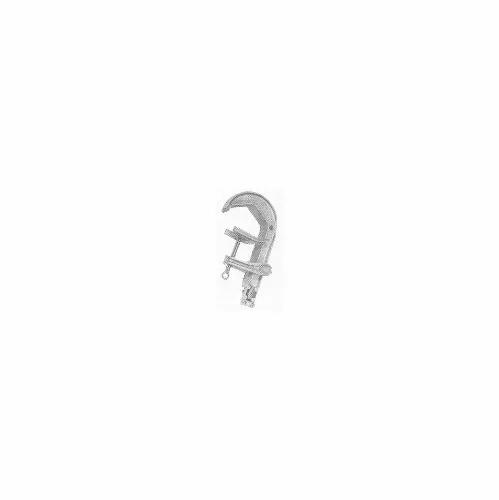

HASTINGS 12282 Single Ground Clamp 6.625 Dia. MaxHASTINGS 12282 Single Ground Clamp 6.625 Dia. MaxHASTINGS 12282 Single Ground Clamp 6.625 Dia. MaxWeight5.5 lbs.GROUND CLAMPS FOR SUBSTATION GROUNDING – ALUMINUM- The grounding clamps with hanger studs enable substation maintenance crews to utilize their portable grounds on large bus by providing a fault current rated hanger stud as part of the clamp(Clamp numbers 21056, 21546-1, 12282)- Use of the hanger stud clamps could save cost of special ground assemblies made up for each substationSPECIFICATIONS:- MAIN LINE RANGE :MAXIMUM 6.625 DIA BUS; MINIMUM 1/0 STR .398 DIA- Max. size cable :4/0- Max Fault Current Rating:54KA@ 15 CYCLES, 39KA@ 30 CYCLES- Terminal Type:BoltedWEIGHT:5.5 LBS
