Product Description

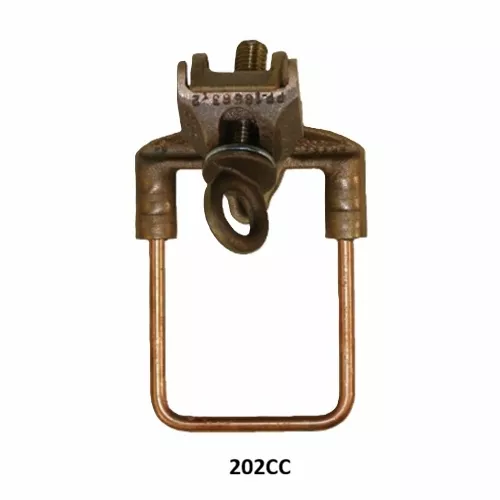

HASTINGS 202CC Standard Hot Line Stirrup6 Sol. – 400 MCMHASTINGS 202CC Standard Hot Line Stirrup6 Sol. – 400 MCMHASTINGS 202CC Standard Hot Line Stirrup6 Sol. – 400 MCMSTANDARD HOT STIRRUP- Recommended for copper lines- Easily installed with all shotgun type hot sticks- Inside loop width – 2-1/2 inches- Maximum installation torque – 200 inch pounds- Stirrups are crimped with a 30 ton hydraulic pressSpecifications:- Type of ConnectionCU – CU- Main Line Size :Maximum – Bare-400 MCM, Minimum – Bare-6 SOL – Stirrup Bar Diameter:1/4 inch CU- Maximum Amp Rating :380Weight1.5 lbs.NOTE:ADD THE SUFFIX “XB” FOR FACTORY INSTALLED INHIBITOR AND INDIVIDUAL PACKAGINGADD THE SUFFIX “BGP” FOR TIN PLATE (MINIMUM ORDER 100 UNITS)
