Product Description

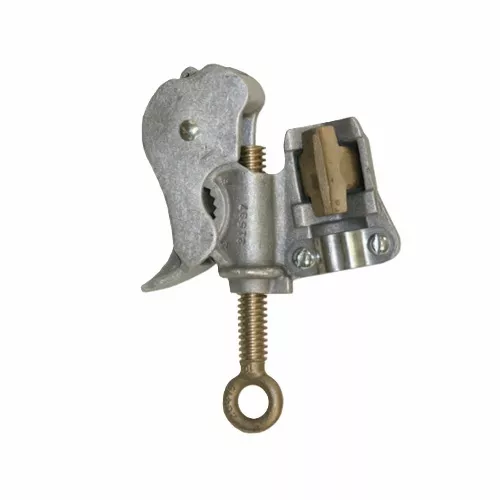

HASTINGS 4706-4 Duck Bill Ground ClampHASTINGS 4706-4 Duck Bill Ground ClampHASTINGS 4706-4 Duck Bill Ground ClampDUCK BILL GROUND CLAMPS- Aluminum- All Cable Ferrules for connecting the grounding cables to the clamps are compression type.- Very stringent requirements are specified by the ASTM F855 standard, and all our clamps, cables and ferrules exceed the values of this standard.SPECIFICATIONS:- SERRATED JAWS- MAIN LINE RANGE MAXIMUM: 954 MCM ACSR / 1.15 DIA- MAIN LINE RANGE MINIMUM:6 SOLID / .16 DIA- MAXIMUM SIZE CABLE:4/0- MAXIMUM FAULT CURRENT RATING:43KA@15 CYCLES / 30KA@30 CYCLES- TERMINAL TYPE :Bolted- WEIGHT1.5 lbs.
