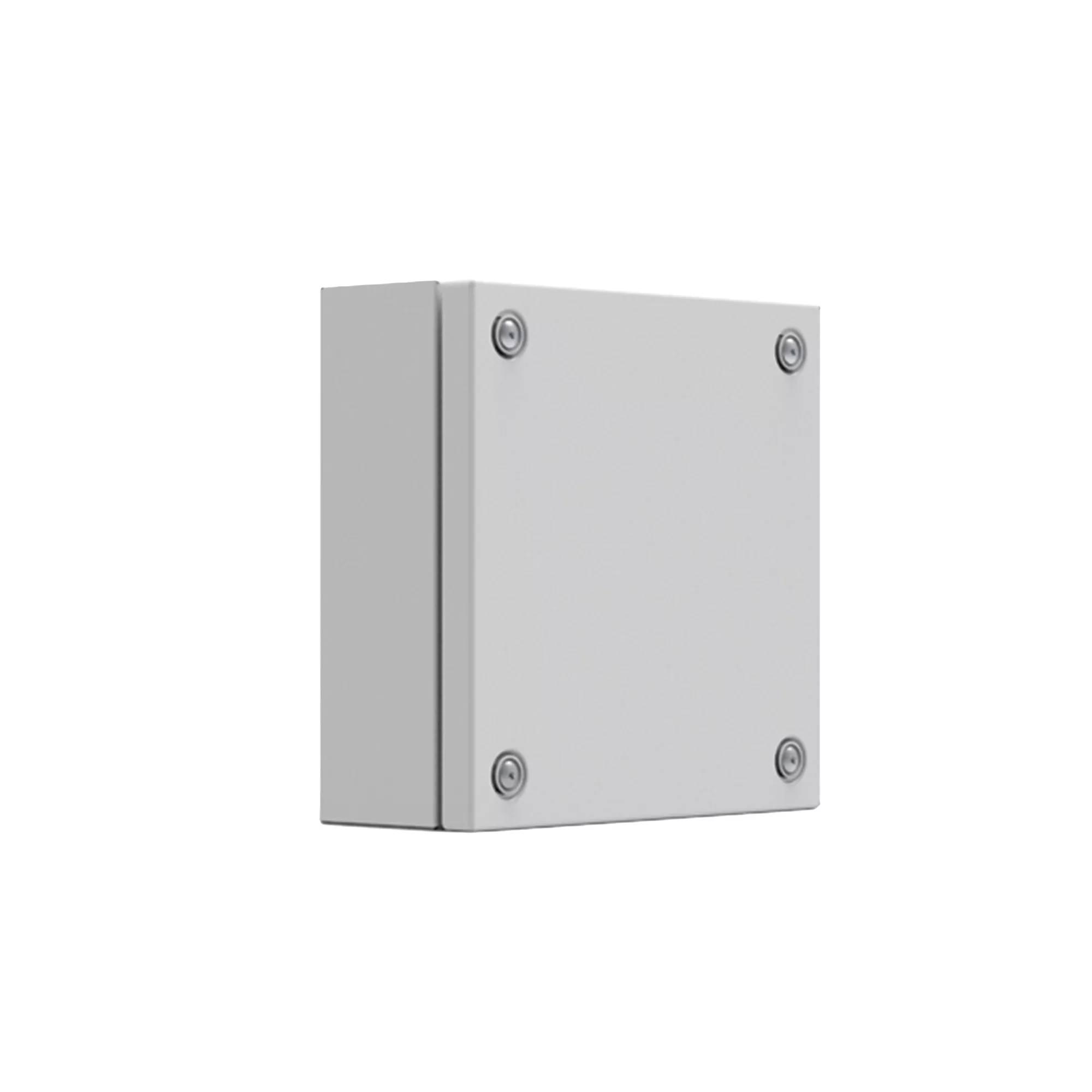

Terminal Box, STB is well suited for demanding indoor environments with metric sizing and appealing design. This Terminal Box, STB, STB406012 item measures 400x600x120mm with a material of Mild Steel, color Light Gray.
Body: Folded and seam welded
Body: Four 8.5 mm diameter holes for wall fixing
Body: Four M6 &215; 13 studs for bottom profiles / mounting plate fixation
Gasket: Sealing is ensured by an injected one piece polyurethane gasket
Earthing/Grounding: M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels
Delivery: Body, cover, cover screws, fixing screws, cover plugs, and earthing facilities
Specifications
Brand Name
nVent Hoffman
Type
Mild Steel Industrial Terminal and Junction Boxes
Length
24.00 in
Width
16.12 in
Depth
4.72 in
Cubic Capacity
1 Cu-ft
Material
Steel
Finish
Powder Coat
Color
Light Gray
NEMA Rating
NEMA Type 4NEMA Type 12NEMA Type 13
Cable Entry
No
Application
Controls and Drives; Factory Automation and Process Control
UPC
783510529642
