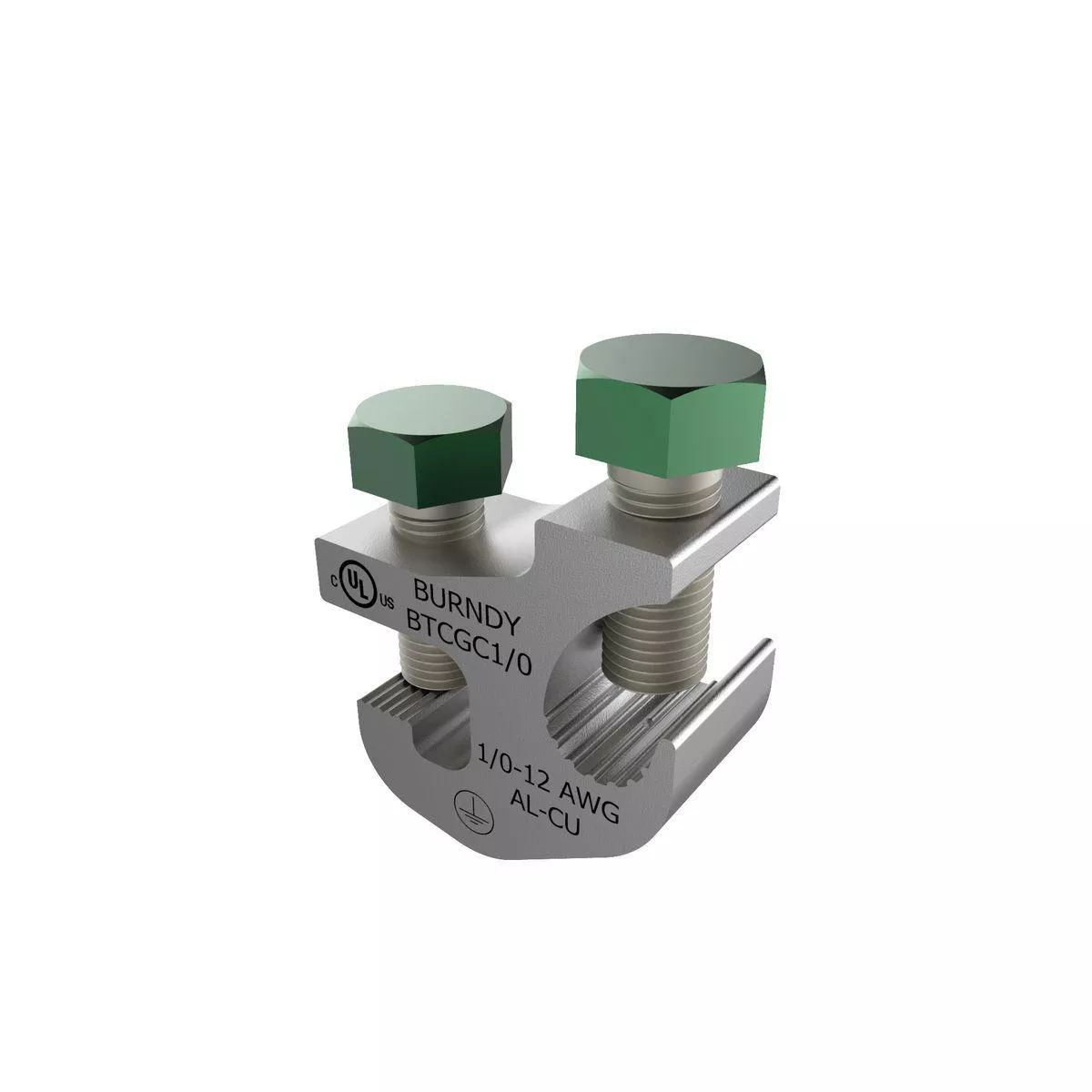

Made of aluminum and tin plated, the BTCGC and BTCGCSS cable tray and flange clamps accommodate aluminum or copper conductor 14 AWG through 250 kcmil. SS version is suitable for outdoor applications. The BTCGC clamp may be used with most types of cable tray with an inside or outside flange design or surfaces with flat flanges.
Tin plated aluminum for durable, long lasting corrosion resistance
cULus 467 Listed for Grounding and Bonding in US and Canada
cULus 2703 Listed for solar PV applications in US and Canada
Accommodates most popular styles of cable tray with inside or outside flange
Quick and easy installation
no drilling or special tools required
Set screw bonds clamp to the cable tray while another set screw securely fastens the grounding conductor to the clamp providing vibration resistance and outstanding pull-out values
Grounding green hardware as required in Section 8.4 of UL2703
N/A
Specifications
Brand Name
Hubbell
Sub Brand
Burndy
Material
Aluminum
Finish
Tin Plated,Tin-Plated
UPC
621945546486
Packages
