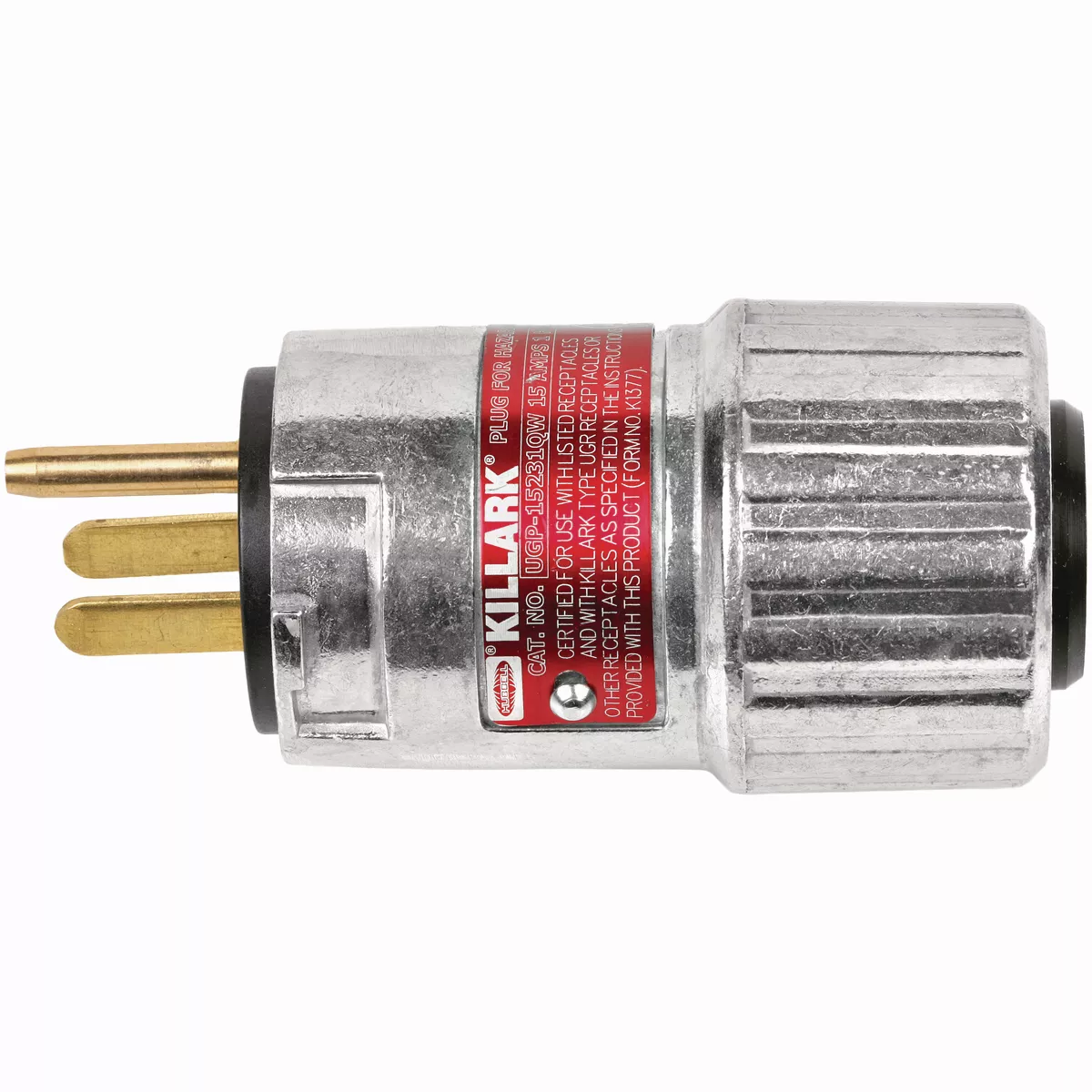

ACCEPTOR® plugs conform to NEMA configurations and can be used with standard receptacles in non-hazardous areas to maximize equipment utilization. The system s “turn to engage” feature locks in plug and can be used to prevent accidental disengagement of critical equipment. Plugs for use with type S, SO, ST or STO heavy duty cord.
Factory sealed chamber in UGR receptacle contains switch’s arcing components.
Spring loaded receptacle cover closes when plug is removed.
Copper-free aluminum (less than 4/10 of 1%) alloy resists corrosion
Electrostatically applied and baked powder epoxy/polyester finish
ACCEPTOR® plugs conform to NEMA configurations, while it’s “turn to engage” feature locks in plug and can be used to prevent accidental disengagement of critical equipment.
Plugs for use with type S/SO/ST/STO heavy duty cord.
Specifications
Brand Name
Killark
Sub Brand
Acceptor®
Item Name
Male Plug with Quick Wiring
Type
Interchangeable Blade Style
Number of Wires
3
Number of Poles
2
Voltage Rating
125 VAC
Amperage Rating
15 A
Conductor Size
10, 12 or 14 AWG
Color/Finish
Gray
Cord Type
S, SO, ST, STO, SOO, SOW or SOOW
Phase
1
NEMA Rating
5-15P, NEMA 3, 7BCD, 9FG
Material
Copperfree Aluminum
Mounting Type
Surface
Dimensions
3.36 in L x 1.69 in W x 1.69 in H
Environmental Conditions
Wet and Hazardous Locations
Standards
UL Listed, CSA Certified
Application
Petroleum Refineries, Chemical Plants, Wet/Damp Areas, Corrosive Environments, Petroleum Plants, Grain Elevators/Feed Mills, Flour and Feed Mills, and Indoor or Outdoor Locations
UPC
783936076683
