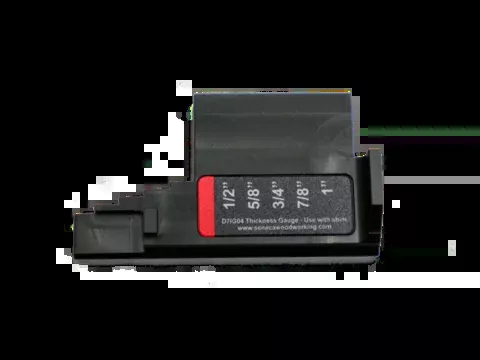

The Seneca Woodworking Imperial Thickness Gauge for the Festool Domino DF 700 allows you to quickly and effortlessly adjust the Domino fence offset to center your mortise on a variety of imperial material thicknesses. The gauge installs in less than a minute using a Torx T10 bit (not included), and is a direct replacement for the metric thickness gauge included with your Domino DF 700.
The Imperial Thickness Gauge is CNC machined from Delrin material and designed to center on 1/2″, 5/8″, 3/4″, 7/8″, and 1″ nominal ply thicknesses.
**NOTE!** This gauge requires one of our Domi-Shims to function properly. If you don’t already own our Domi-Shim set you can purchase the gauge and single shim in a set HERE.
The Domino DF700 fence has a lower travel limit that would normally prevent it from centering on 1/2″. 5/8″ or 3/4″ ply so a shim is required to enable centering on these thicknesses. The Imperial Thickness Gauge for DF700 is designed to work with the 1/2″ Seneca Woodworking Domi-Shim. We sell the Imperial Thickness Gauge two ways: In a set with the required shim, and by itself for people who already own the Seneca Woodworking Domi-Shim set. The D7IG04 Imperial Thickness Gauge will not work properly without this required shim installed.
