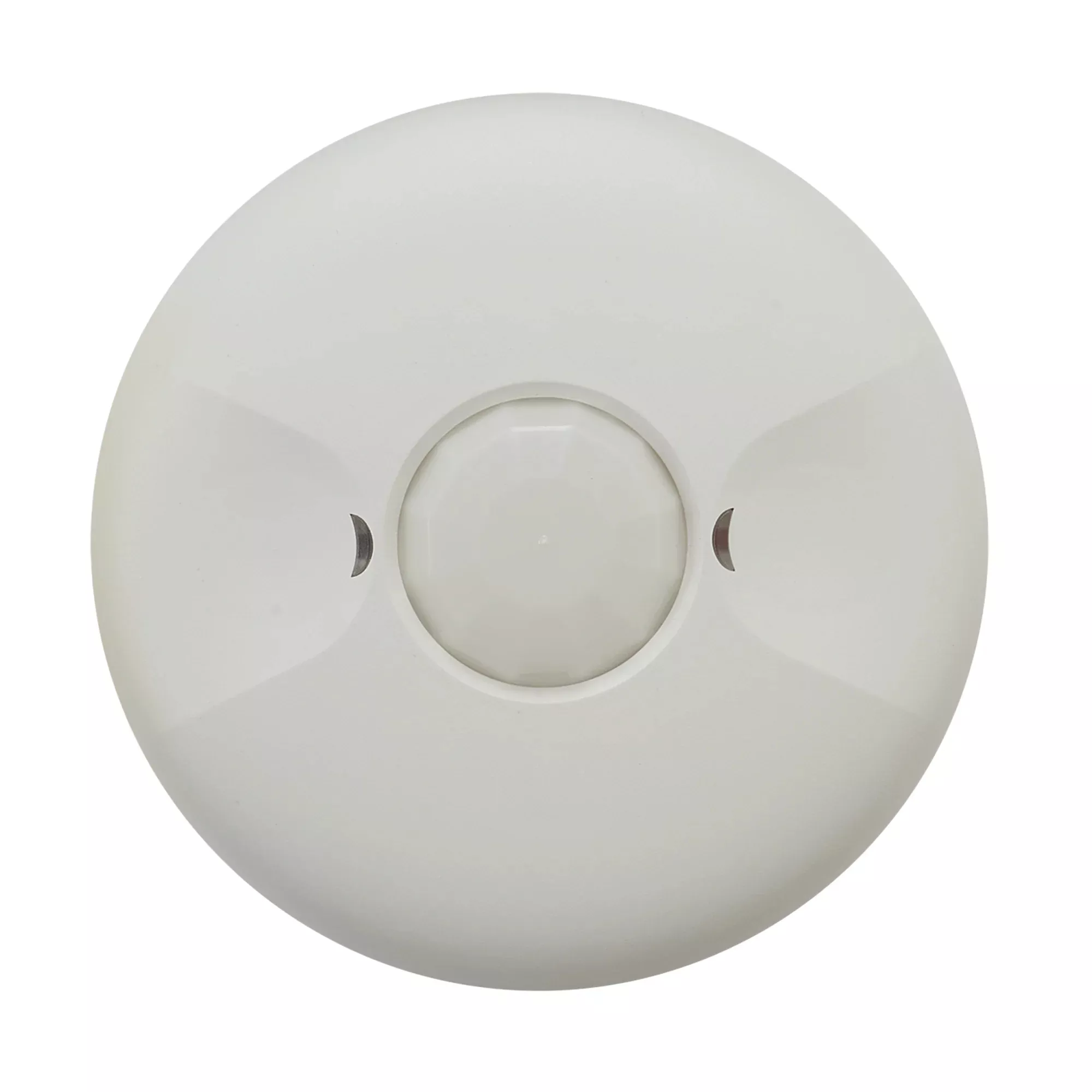

The IOS-CMP-U 360° Passive Infrared (PIR) Line Voltage Occupancy Sensors control lighting systems based on occupancy and ambient light levels. When movement is detected, the sensor turns the lights ON. If no movement is detected for a user-specified time, the lights are turned OFF. The occupancy sensor provides a 360° coverage pattern, up to 1200 square feet.
PIR technology sensing for presence detection
Coverage: 1200 ft2 when mounted on 8 to 11 ft ceiling
Zero-crossing technology for long life and performance
Adjustable ambient light sensor override
Requires neutral connection
Incandescent/Fluorescent/CFL/LED compatible
Specifications
Brand Name
Intermatic
Type
OCCUPANCY SENSOR
Color
White
Mounting Type
Ceiling
Dimensions
4.53 DIAMETER X 1.38 HEIGHT IN, 115 DIAMETER X 35 HEIGHT MM
Standards
cULus Listed, UL/cUL Listing, ISO9001, California Title 24 Compliant
Application
Commercial
UPC
078275139916
