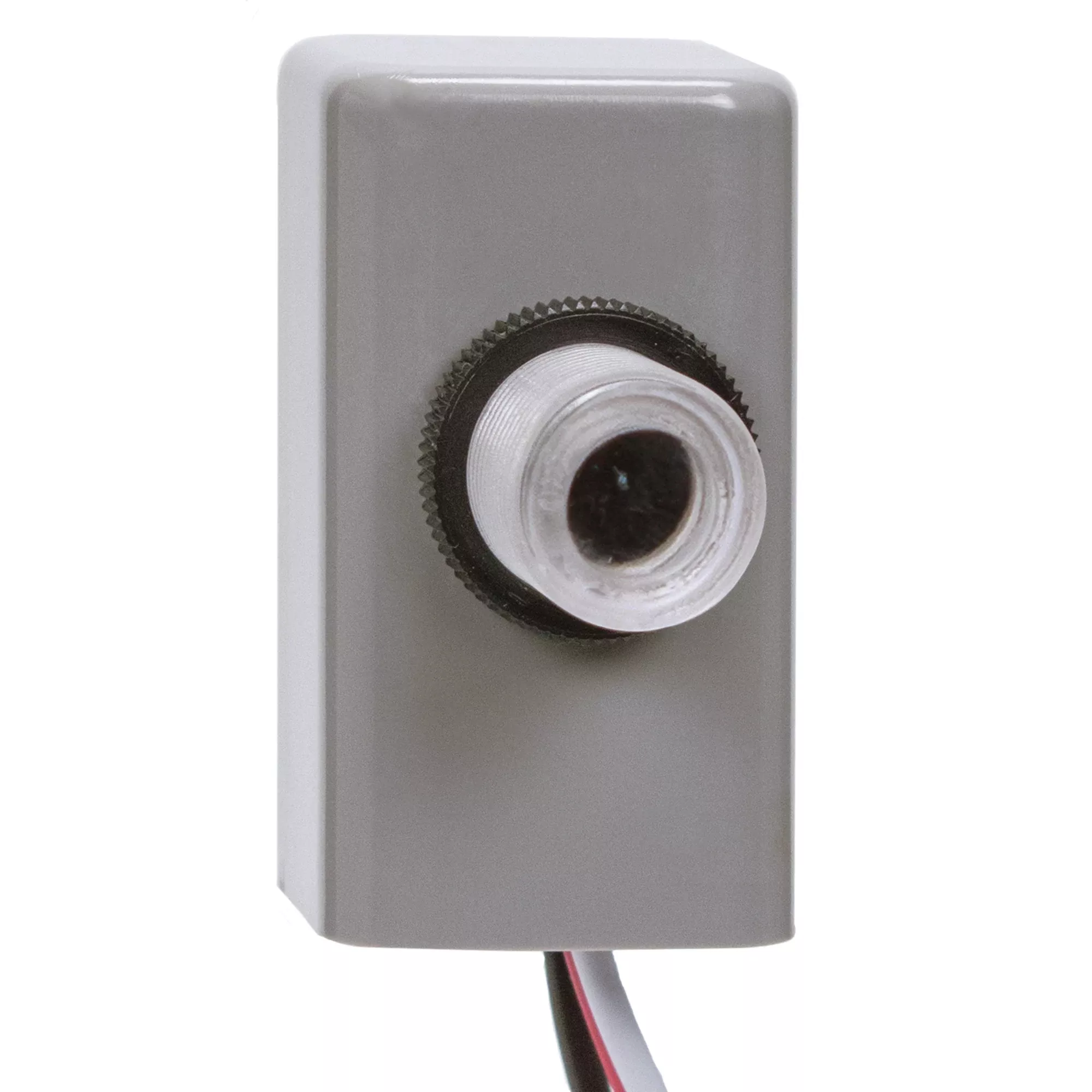

Select grade fix mount electronic photo control, button. Non drift silicon light sensor with IR filter. DC relay with zero crossing circuitry for extended life. 15 year design life. Conformal coated PCB. Exceeds 10000 on/off switching cycles. Ideal for single or multi fixture HID and LED installations up to 1650 W, 277 VAC. 255J MOV surge protection element. Overall dimensions within ANSI C136.24 guidelines 18 AWG wire leads.
Non-drift silicon light sensor with IR filter
DC relay with zero-crossing circuitry for extended life
Conformal coated PCB
15-year design life
Exceeds 10,000 ON/OFF switching cycles
Fail ON mode
Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
255 J MOV surge protection element
Mounts internally to enclosure.
Features 3/8″ – 18 NPSM thread for a minimum installation hole size of 5/8 inch diameter
Specifications
Brand Name
Intermatic
Item Name
Photocontrol with Time Delay Function
Type
Cuboid, Electronic, Button
Voltage Rating
277 V
Lamp Type
High Pressure Gas Discharge
Ballast Load
6 A, 120 VAC, 50 Hz, 6 A, 120 VAC, 60 Hz, 6 A, 208 VAC, 50 Hz, 6 A, 208 VAC, 60 Hz, 6 A, 240 VAC, 50 Hz, 6 A, 240 VAC, 60 Hz, 6 A, 277 VAC, 50 Hz, 6 A, 277 VAC, 60 Hz
Sensor Type
Electronic photocontrol
Mounting
Fixed
Amperage Rating
6000 mA
Frequency Rating
60 Hz
Timing Range
2 to 5 s
Material
Polycarbonate
Color
Gray
Finish
Plastic
Dimensions
33.02 mm L x 31.496 mm W x 57.15 mm H
Temperature Rating
-40 to 70 °C
For Use With
Lighting, pathways
Standards
ANSI C136.24 Compliant, UL Certified to US, CSA Certified to Canadian, Title CA 20 Listed
Application
Dusk to Dawn Lighting Control
UPC
078275146280
