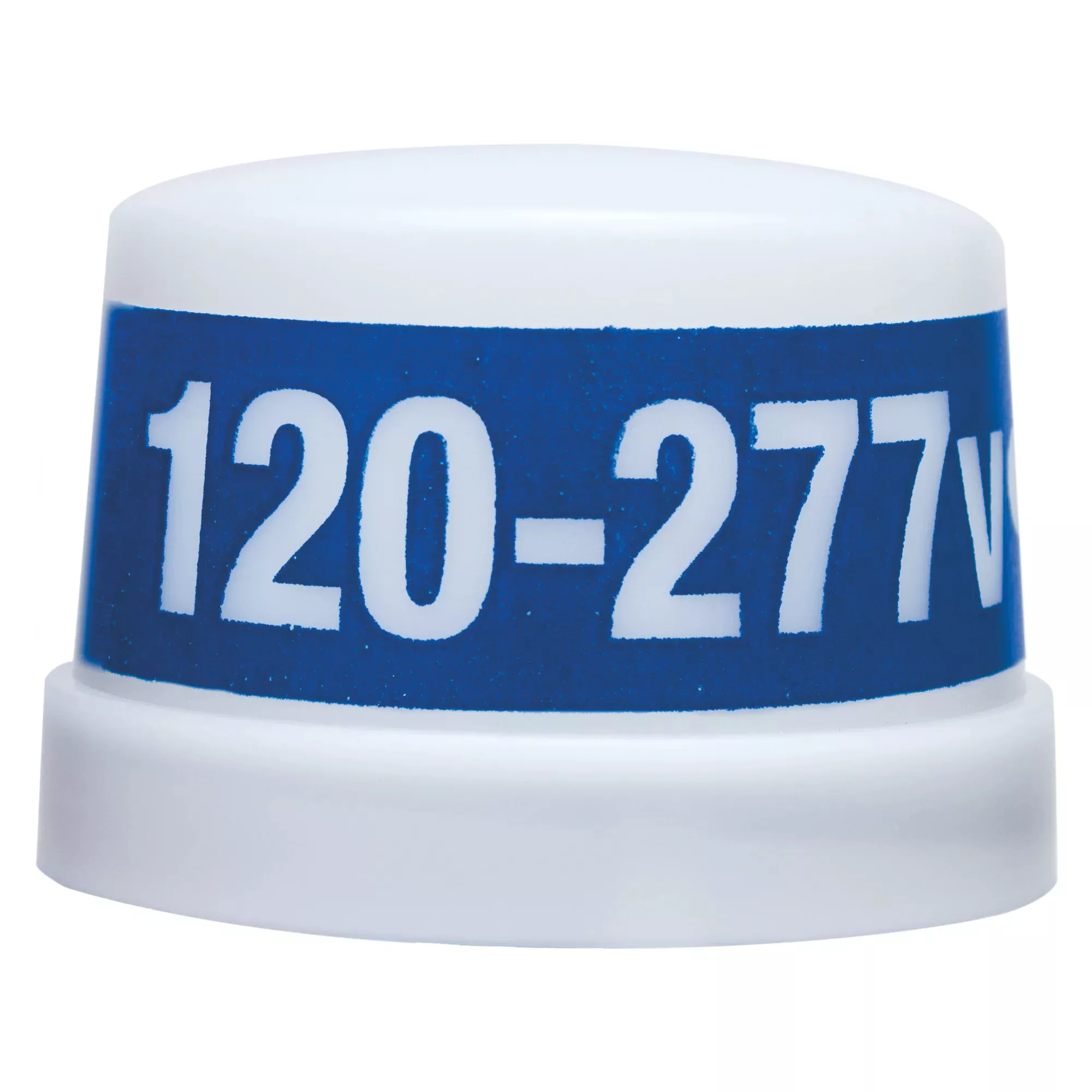

Specific Grade ON/OFF switching with high quality relays. Zero-crossing electronic circuitry for extended life (LED and EK models). Employs electronic components exclusively selected to meet extended life targets.
Non-drift silicon light sensor with IR filter
DC relay with zero-crossing circuitry for extended life
All components meet 20-year life expectancy
Conformal coated PCB
Exceeds 15,000 ON/OFF switching cycles
Ideal for single or multi-fixture HID and LED installations (up to 2,220 W @ 277 VAC)
510 J MOV surge protection
High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched
Specifications
Brand Name
Intermatic
Item Name
Photocontrol
Type
Specifier Grade
Voltage Rating
277 V
Ballast Load
1800 VA
Sensor Type
Electronic photocontrol
Mounting
Locking Type
Frequency Rating
50/60 Hz
Timing Range
2 to 5 s
Material
Polycarbonate
Color
White With Blue Band
Finish
Plastic
Dimensions
77.775 x 85.725 x 69.9 mm
Temperature Rating
70.0 degrees C
For Use With
Lighting, pathways
Standards
ANSI C136.10, UL Recognized, cULus Listed, CAS Approval, Title CA 20 Listed, RoHS Compliant
Application
Outdoor Lighting Control
UPC
078275143647
