Product Description

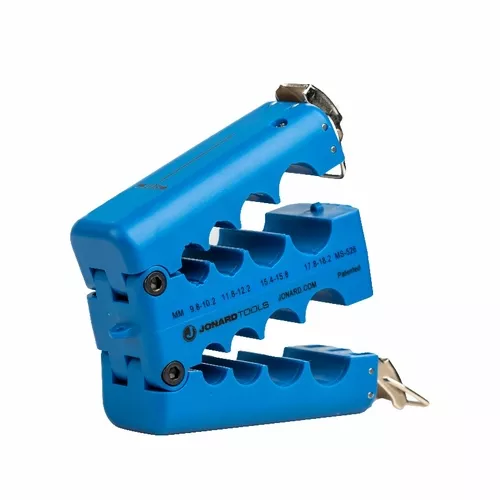

JONARD MS-526 Mid Span Slit & Ring Tool (10.2mm-18.2mm) NEWThe PATENTED and award-winning MS-526 Mid Span Slit and Ring Tool is designed to provide easy access to optical fibers in Corning Altos loose tube cable with binderless FastAcess technology (as well as other similar thin-walled 9.8 to 18.2 mm diameter jackets). Building on the popularity of the Jonard Tools MS-6 and MS-26 Fiber Optic Mid Span Slitting Tools, we have incorporated a ring feature in the tool to make it even more versatile.Consists of 4 precision slitting grooves and 4 precision ring grooves ranging in size from 9.8 mm to 18.2 mmOne side of the tool performs radial/ring cuts and the other side slits the cable (longitudinal cut)Compact design weighing less than 0.61 lb (277 g) with included tethering hole makes it perfect to use in tight spaces or on the goThe indicator line on top of the unit indicates the position of the blade for accurate slitting and ringingThis tool was specially designed for use on Corning Altos® loose tube with FastAccess® technology cables and other similar style cablesReplacement blade set available, part number: MS-526RBBlades last for 5,000 slits/cutsGroove Sizes: 9.8-10.2 mm | 11.8-12.2 mm | 15.4-15.8 mm | 17.8-18.2 mmSpecificationsCut TypeSlit, RingNumber of Slitting Grooves4Number of Ringing Grooves4Cable TypeCorning Altos® with FastAccess®Cable Diameter9.8 mm-18.2 mmDimensions3.58″ x 1.53″ x 3.37″ (9.1 cm x 3.9 cm x 8.6 cm)Weight0.61 lb (277 g)UPC 810053350119
