Product Description

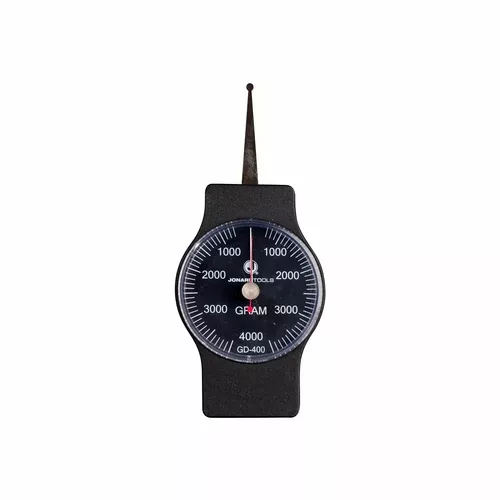

JONARDGD-400 Gauge, Dynamometer 400-4000 Gr. 811490010109The Jonard Tools Dial Force Gauges (also referred to as Dynamometer Gauges or Tension Gauges) are all ergonomically designed and have become the industry standard for measuring force. This dynamometer force gauge features the following:Measurements are very simple to make, just place point of gauge arm perpendicular to the force being measuredReading can be taken in both directions – clockwise and counterclockwiseMeasuring springs are made of hard tempered annealed beryllium copper for durable useAll gauges are equipped with a maximum reading pointer and the gauge has a rounded tip with a dial diameter of 2 1/2 inchesGauges offer extreme precision and high durabilityAccuracy: 100 grams, graduation: 100 grams, range: 700-4000 grams, maximum capacity: 4000 gramsSpecificationsLever Tip StyleRoundTip Diameter0.140″ (3.55 mm)Tip Thickness0.0689″ (1.75 mm)Dial Diameter2 1/2″ (6.35 cm)Accuracy+- 100 gMax Capacity4000 gGraduation100.00 gRange700-4000 gWeight0.924 lb (419.12 g)UPC No.811490010109
