Product Description

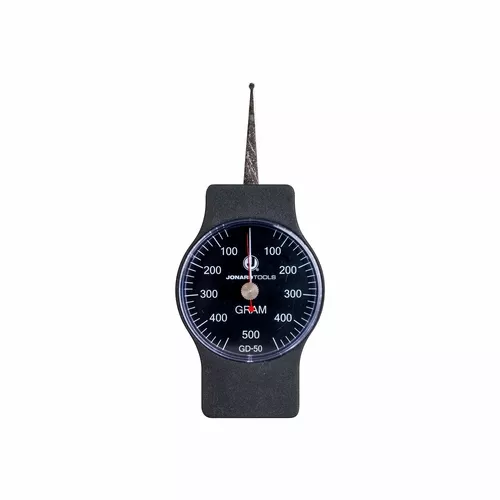

JONARDGD-50 Gauge, Dynamometer 60-500 Gr. 811490010079The Jonard Tools Dial Force Gauges (also referred to as Dynamometer Gauges or Tension Gauges) are all ergonomically designed and have become the industry standard for measuring force. This dynamometer force gauge features the following:Measurements are very simple to make, just place point of gauge arm perpendicular to the force being measuredReading can be taken in both directions – clockwise and counterclockwiseMeasuring springs are made of hard tempered annealed beryllium copper for durable useAll gauges are equipped with a maximum reading pointer and the gauge has a rounded tip with a dial diameter of 2 1/2 inchesGauges offer extreme precision and high durabilityAccuracy: 20 grams, graduation: 20 grams, range: 60-500 grams, maximum capacity: 500 gramsSpecificationsLever Tip StyleRoundTip Diameter0.140″ (3.55 mm)Tip Thickness0.0744″ (1.89 mm)Dial Diameter2 1/2″ (6.35 cm)Accuracy+- 20 gGraduation20.00 gMax Capacity500 gRange60-500 gWeight0.873 lb (395.99 g)UPC No.811490010079
