Product Description

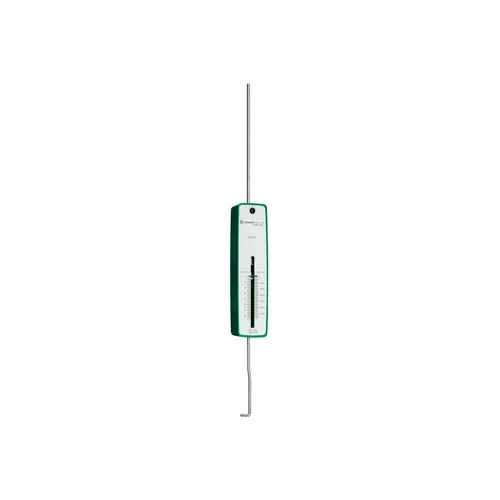

JONARDGPP-15 Gauge, Push-Pull 0-6840 Gr/0-15 Lbs 811490011410The Jonard Tools Push-Pull Force Gauges are economically constructed and made of high impact polystyrene casing. This force gauge features the following:Simplified in construction yet accurately measures push-pull forcesThese force gauges can also be used to test belt tension in ATMsGauge is graduated in two scales: grams and ouncesIdeal for field service use and applications requiring gauges with maintenance-free operationPrecision springs are individually calibrated and checked with dead weightsScales have full accuracy as the permanent calibration is held to ± 1 graduationAccuracy: 1 graduation, maximum capacity: 15 lb (6.804 kg), metric capacity: 6.804 kg x 100 gSpecificationsGauge FaceFlatTip Diameter0.126″ (3.20 mm)Accuracy+- 1 graduationGraduation4 ozMax Capacity15 lb (6.804 kg)Metric Capacity6.804 kg x 100 gHeight1″ (25.4 mm)Width1 1/2″ (38.1 mm)Length14″ (355.6 mm)Weight0.232 lb (105.23 g)UPC No.811490011410
