Product Description

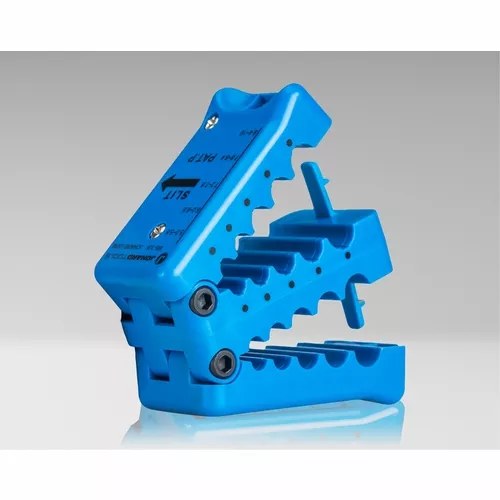

JONARD MS-326 MICRO DUCT FIBER CABLE SLIT AND RING TOOLThe patented MS-326 Fiber Optic Mid Span Slit and Ring Tool is designed to provide easy access into fiber optic cables specifically used in micro ducts. These cables have a thin wall jacket design that is difficult to open without causing damage to the buffer tubes inside, but the MS-326 addresses that concern. The MS-326 will also slit thin wall buffer tubes. Building on the popularity of the Jonard Tools MS-6 and MS-26 Fiber Optic Mid Span Slitting Tools, we have incorporated a ring feature in the tool to make it even more versatile.The MS-326 consists of 5 precision slitting grooves and 5 ring grooves ranging in size from 5 mm to 10 mm.Groove Sizes: 5.0 – 5.6 mm | 6.0 – 6.6 mm | 7.2 – 7.8 mm | 7.8 – 8.4 mm | 9.4 – 10 mmInstructions:Identify the correct side of the tool & groove size for your cable.Place cable in the tool and close to lock in place.To Ring: Rotate 3-6 times in direction of arrowTo Slit: Pull in direction of arrowOpen tool and remove cable. If slit, peel open the jacket along slit lines.Note: This tool was designed for Corning fiber cables, “MiniXtend Fast Access Binderless” and “HD MiniXtend” as well as other similar styles.Replacement blade set available, part number: MSB-5010
