Description:

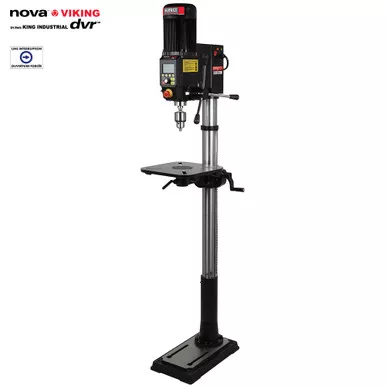

- Smart drill press combines common drill press features with state of the art technology
- Powerful direct drive 1 HP high torque motor with no pulleys or belts to cause vibration
- Digital Variable Reluctance (DVR) Direct Drive Technology with Adaptive Control (TM) Software which works for you to produce optimum results in wood, metal, plastic and glass
- Constant torque under load, depth and vibration sensors and emergency stop
- Intelligent speed selection and dial knob for precise speed adjustments
- Automatic electronic depth stop quickly and accurately stops to the precise programmed depth
- Electronic braking and forward/reverse
- Convenient LED light and twin laser guide system
- Comes with 5/8” drill chuck & key, firmware USB cable, knock-out wedge, adjustment wrench and hex. keys
Specifications:
- MODEL – 83705
- CAPACITY – 5/8″
- CHUCK SIZE – 5/8″
- SWING – 16″
- MAX. DISTANCE CHUCK TO TABLE – 26-5/8″
- MAX. DISTANCE CHUCK TO BASE – 46-3/4″
- STROKE – 4-1/2″
- TABLE SIZE – 12-5/8″ x 12-5/8″
- SPINDLE TAPER – MT 2
- QUILL DIAMETER – 60 mm
- VARIABLE SPEED RANGE (OPTIONAL SETTING) – 150 – 3,000 RPM (3,000 – 6,000)
- MOTOR – 1 HP, 15 Amp.
- VOLTAGE – 120V, 60 Hz, 1 phase
- ASSEMBLED DIMENSIONS(LXWXH) / WEIGHT – 12-5/8″ x 20″ x 72″ / 160 lbs
- PACKAGE DIMENSIONS(LXWXH) / WEIGHT – 71-7/8″ x 21-1/2″ x 18-5/8″ / 170 lbs
- UPC – 7 72995 01678 5
