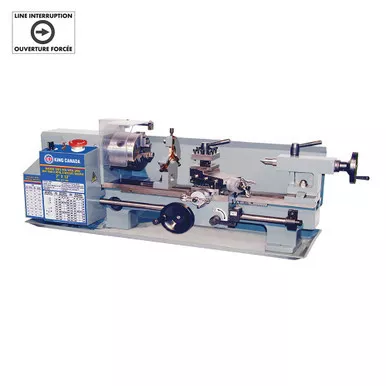

Description:
- Safety guard with limit switch protection
- Line interruption switch system needs a restart after a power failure
- Variable speed control – 0-2,500 RPM
- Forward/Reverse control
- Bedways are hardened and precision ground
- Comes complete with quick change gear box, face plate, steady rest, replacement gears, 4-way tool post, MT2 dead center, threading dial indicator, 4″- 3 jaw chuck, emergency stop button, chuck key and hex. keys
Specifications:
- DISTANCE BETWEEN CENTERS: 12″
- SWING OVER BED: 7″
- SPINDLE BORE: 3/4″
- SWING OVER CROSS SLIDE: 4-1/2″
- TAPER IN HEADSTOCK: MT 3
- TAPER IN TAILSTOCK: MT 2
- WIDTH OF BEDWAYS: 3-1/4″
- TOTAL TRAVEL OF CROSS SLIDE: 2-3/4″
- TOTAL TRAVEL OF TOP SLIDE: 3″
- SPINDLE VARIABLE SPEED: 2 (0-1,100, 0-2,500) RPM
