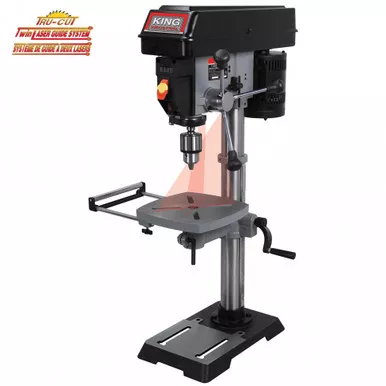

Description:
- Powerful 1/2 HP, 5 Amp. motor
- Mechanical variable speed system from 580 – 3,200 RPM
- Digital readout for precise spindle speed
- Dual intersecting adjustable laser guides
- Accepts up to 5/8″ shanked drill bits
- Positive depth stop for quick and easy adjustment of the spindle travel
- Worklight incorporated into head illuminates the work area for maximum visibility (LED bulb included)
- Comes with 5/8″ drill chuck, chuck key, onboard chuck key storage and adjustment hex. keys
Specifications:
- MODEL – KC-12HS-VS
- CAPACITY – 5/8″
- CHUCK SIZE – 5/8″
- SWING – 12″
- MAX. DISTANCE CHUCK TO COLUMN – 6″
- MAX. DISTANCE CHUCK TO TABLE – 13″
- STROKE – 3″
- TABLE SIZE WITH EXTENTION – 16-1/4″ x 9-1/2″
- SPINDLE TAPER – MT 2
- VARIABLE SPEEDS – 580 – 3,200 RPM
- TABLE T-SLOTS – 9/16″
- MOTOR/VOLTAGE – 5 Amp. @ 120V, 60 Hz, 1 phase
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT – 19-1/2″ x 21″ x 37-1/2″ / 82 lbs
- PACKAGING DIMENSIONS (LXWXH) / WEIGHT – 29-1/4″ x 19-3/4″ x 11-1/2″ / 87 lbs
- UPC – 7 72995 01708 9
