Description:
- Powerful 2 HP, 220V single phase motor

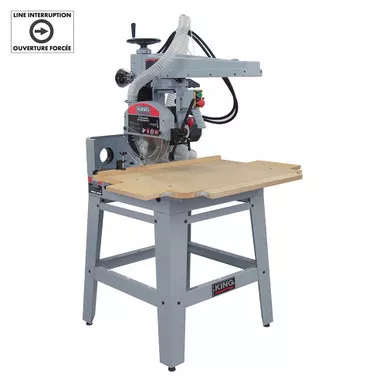

- Industrial rated radial arm saw has the versatility to crosscut, bevel cut, miter cut and swivel to a rip position to cut down panels precisely and accurately
- Precision indexing with positive stops at 22.5?, 45? and 90? for accurate bevel cuts
- Automatic built-in mechanical blade brake system
- Oversized MDF table top
- Magnetic safety switch with keyed lock preventing unauthorized use of the radial arm saw
- Two 4″ dust chute for dust collector hook-up
- Includes 12″ negative rake blade, adjustment wrenches and hex. keys
- Adjustable return spring retracts motor and carriage
Specifications:
- BLADE DIAMETER: 12″
- BLADE ARBOR (WITH 1″ BUSHING): 5/8″
- MAXIMUM DEPTH OF CUT (10″/12″): 2″ / 3″
- MAXIMUM DEPTH OF CUT AT 45? (10″/12″): 2″ / 3″
- MAXIMUM CROSSCUT CAPACITY: 16″
- MAXIMUM RIP CAPACITY: 26-3/8″
- DADO CAPACITY: 13/16″
- MDF TABLE SIZE: 35-3/8″ x 27-1/2″
- MOTOR: 2 HP, 8.5 Amp.
- VOLTAGE: 220V, 1 phase, 60 Hz
