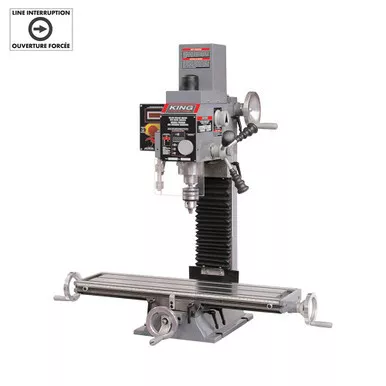

Description:
- Powerful 1 HP single phase DC motor
- Safety guard with limit switch protection
- Magnetic line interruption switch needs a restart after a power failure
- Spindle depth digital readout and control panel with metric and imperial readings
- Spindle RPM digital readout
- Spindle depth fine feed knob
- Forward/reverse switch and variable speed selector dials
- Comes with 1/2″ chuck, chuck key, R8 chuck arbor, safety guard, 2 T-bolts, oil bottle, adjustment wrenches, hex. keys and tool box
Specifications:
- DRILLING CAPACITY IN CAST-IRON: 3/4″
- DRILLING CAPACITY IN STEEL: 5/8″
- MAX. DISTANCE SPINDLE NOSE TO TABLE: 13″
- SWING: 13″
- SPINDLE TAPER: R8
- SPINDLE STROKE: 2″
- VARIABLE SPEEDS: 2 (50-1,125 / 100-2,250) RPM
- FACE MILL CAPACITY: 2-1/2″
- END MILL CAPACITY: 3/4″
- MAX. LONGITUDINAL TRAVEL: 18-7/8″
