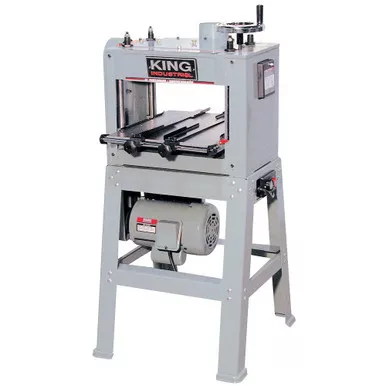

Description:
- Powerful 1.5 HP motor
- Double drive belt system
- Table raises and lowers on four precision ground columns
- Comes complete with stand, planing knives, setting gauge and 4″ dust chute for dust collector hook-up
- Jack Screw cutterhead system – Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place
- Moulding cutterhead guide system – Specially designed for guiding the workpiece into the moulding cutters
Specifications:
- MAXIMUM PLANING WIDTH: 13″
- MAXIMUM MOULDING WIDTH: 13″
- MAXIMUM PLANING THICKNESS: 6-1/8″
- MAXIMUM MOULDING THICKNESS: 6-1/8″
- MINIMUM LENGTH OF STOCK FOR PLANING: 6.7″
- MINIMUM LENGTH OF STOCK FOR MOULDING: 6.7″
- MAXIMUM PLANING DEPTH: 1/8″
- MAXIMUM MOULDING DEPTH: 3/4″
- CUTTERHEAD SPEED: 4,500 RPM
- NUMBER OF KNIVES: 3
