Description:

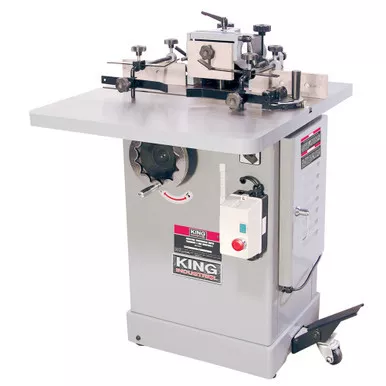

- Powerful 3 HP motor – 3/4″ wood shaper
- Extra large heavy-duty cast-iron table and extension table are ground for accuracy
- Two spindle speeds, 8,000 and 10,000 RPM
- Spindle travels a full 3″
- Front mounted forward reverse switch and magnetic safety switch
- Mobile base system built into the cabinet
- Adjustable fence system features a cutter guard, spring hold-downs and built-in 4″ dust chute
- Comes complete with 1/2″ and 3/4″ interchangeable spindles, 1/4″ and 1/2″ router bit adapters and a miter gauge
Specifications:
- SPINDLE DIAMETER: 1/2″, 3/4″
- SPINDLE SPEEDS: 8,000 and 10,000 RPM
- TABLE SIZE: 28″ x 30″
- SPINDLE OPENINGS ON TABLE: 1-5/8″, 3″, 3-1/2″, 7″
- SPINDLE LENGTH: (1/2″) 4″, (3/4″) 4-5/8″
- UNDER NUT CAPACITY: (1/2″) 3″, (3/4″) 3″
- TABLE HEIGTH: 34″
- MOTOR: 15 Amp.
- VOLTAGE: 220V, 1 phase, 60 Hz
- PACKAGING DIMENSIONS (LXWXH) / WEIGHT: 30″ x 30″ x 37-7/8″ / 376 lbs
