Description:

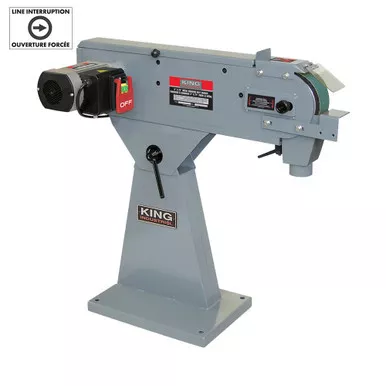

- Powerful 220V, 2 HP motor
- Sanding belt rotates on 7-1/2″ vented drive wheel and solid
- rubber rear wheel for maximum tracking and sanding controlHead pivots up or down on base for easy and safe work heights
- Line interruption electro-mechanical switch needs a restart after a power failure
- Front and rear 3″ dust ports for efficient dust and debris removal
- Horizontal working height of 36″
- Quick release sanding belt tension lever and angle adjustment lever for adjusting the sander angle
- Belt tracking adjusting knob
- Graphite pad diminishes belt friction for increased sanding belt life
- Comes with 80 Grit pure zirconia sanding belt, work stop, workpiece end support and safety guard to protect users from sparks produced during end sanding
Specifications:
- BELT: 3″ x 78-3/4″
- BELT SPEED (FT/MIN): 6,900
- BELT TILT ANGLE RANGE: 0°- 60°
- MOTOR: 2 HP, 9 Amp.
- RPM: 3,400
- VOLTAGE: 220V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 41-3/4″ x 16-1/2″ x 38″ / 158 lbs
- PACKAGE DIMENSIONS (LXWXH) / WEIGHT: 27-1/2″ x 19-1/4″ x 44-1/2″ / 170 lbs
