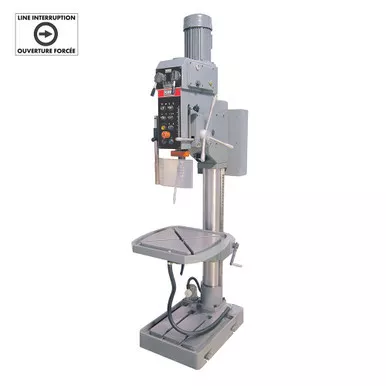

Description:
- Powerful 2 HP motor, provides ample power for production drilling
- Magnetic line interruption switch and safety guard with limit switch protection
- Quill has an internal MT 4 to accept tapered drill press accessories
- Feed selector dial and automatic power downfeed lever and tapping
- Production sized table with coolant trough and clamping slots
- Positive depth stop for quick and easy adjustment
- Built-in tool ejector
- Magnetic line interruption switch and safety guard with limit switch protection
- Comes with 5/8″ (JT33) drill chuck, chuck key, MT4 chuck arbor, MT4-MT2 sleeve, MT4-MT3 sleeve, recirculating coolant system, work light, retractable transparent guard, drift key and tool box
Specifications:
- DRILLING CAPACITY IN LIGHT ALLOY STEEL: 1-3/8″
- DRILLING CAPACITY IN MILD STEEL: 1-1/2″
- CHUCK SIZE: 5/8″
- SPINDLE TAPER: MT 4
- SWING: 27-1/2″
- STROKE: 7″
- MAX. DISTANCE SPINDLE TO TABLE: 26″
- MAX. DISTANCE SPINDLE TO BASE: 43″
- TABLE DIMENSIONS: 22″ x 22″
- SIZE OF T-SLOT ON TABLE: 5/8″
- SPEEDS: 18 (60-870/120-1740) RPM
- MOTOR: 2.4 AMP
- COOLANT PUMP MOTOR: 1/8 HP
- VOLTAGE: 600V 3Ph 60Hz
