Description:

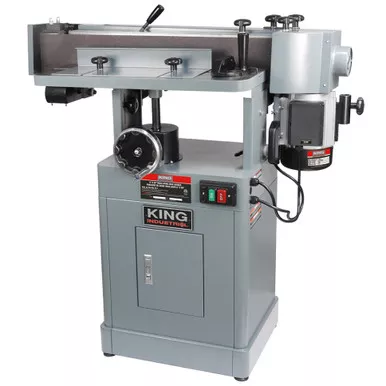

6″ X 89″ OSCILLATING EDGE SANDER
Features
- Powerful 2 HP motor
- Heavy-duty cast iron table construction
- Front table adjustable to different heights using handwheel mechanism for full sanding belt use
- Head tilts 90º down for horizontal sanding operations
- Graphite backing reduces belt friction for longer sanding belt life
- Quick belt release lever for easy belt changes
- Heavy-duty enclosed cabinet stand with built-in door for storage
- 4″ dust chute for efficient dust collector hook-up
- Includes miter gauge, table guide, and end table for curved sanding operations
Specifications
- Model: KC-689-OSC-FX-1
- Belt: 6″ x 89″
- Table size (front): 9-7/8″ x 29-5/8″
- Table size (side): 9-7/8″ x 11-7/8″
- Belt speed: 3,850 SFPM
- Oscillation stroke: 1/2″
- Oscillations per minute: 103
- Motor: 14.5 Amp @ 110V / 7.2 Amp @ 220V
- Voltage: 120/240V, 1 phase, 60 Hz
- Pre-wired at: 240V
- Assembled dimensions (L×W×H) / weight: 48-1/4″ × 26″ × 47-1/2″ / 265 lbs
