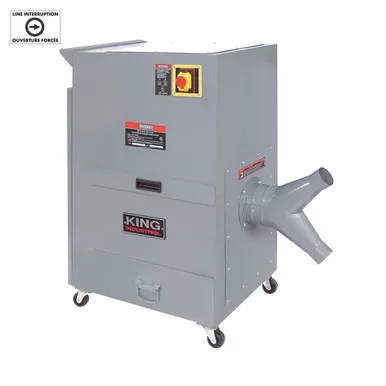

Description:
- Powerful 2 HP, 220V motor
- 2 Step activation safety switch with line voltage interruption in case of power failure
- Ideal for collection of metal chips and abrasive dust produced by metal sanders, grinders, cold cut saws, deburring and chamfering machines
- Large metal chips colection drawer is easy to access and clean
- 6” inlet with Y-inlet adapter with two 3″ dust inlets allowing up to connect up to two metalworking machines
- Comes with large paper filter and iron activated carbon filter
Specifications:
- MAXIMUM AIR SUCTION CAPACITY: 937 CFM
- STATIC PRESSURE (INCH OF WATER): 9.32
- NOICE LEVEL READING AT 60″: 81 dB
- FILTER SIZES (PAPER/CARBON): 19-3/8″ x 15-3/8″ x 7/8″ and 25″ x 16″ x 1″
- FILTER EFFICIENCY: 99% @ 5 Micron
- DUST PORT INLET / Y ADAPTER INLETS SIZE: 6″ / 2 x 3″
- MOTOR: 2 HP / 9 Amp.
- VOLTAGE: 220V, 1 phase, 60Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 40-1/4″ x 22-1/2″ x 43-3/4″ / 222 lbs
- PACKAGING DIMENSIONS (LXWXH) / WEIGHT: 28-1/2″ x 24″ x 40-1/2″ / 225 lbs
