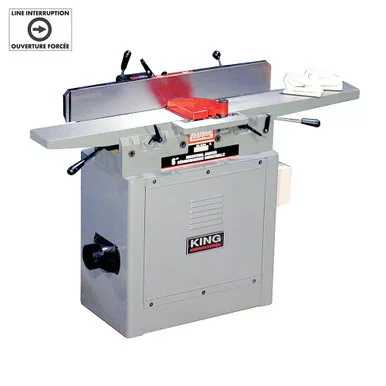

Description:
- Powerful 2 HP motor
- Parallelogram table adjustment system A spiral cutterhead is 50% quieter than a conventional cutterhead
- Precision ground cast-iron tables
- One piece welded cabinet stand has built-in 4″ dust chute for dust collector hook-up
- Lever actuated infeed table with lock handle, for quick easy height adjustment
- Graduated scale located on fence
- Magnetic safety switch
- Sliding bar T-handle controls fence angle adjustment and locks with a single control
- Includes 2 safety push blocks
Specifications:
- CAPACITY: 6″
- CUTTERHEAD SPEED: 5,500 RPM
- DIAMETER OF THE CUTTERHEAD: 3-3/8″
- RABBETING CAPACITY: 1/2″ x 6″
- TABLE SIZE: 6″ x 55-1/2″
- FENCE SIZE: 36″ x 5″
- MOTOR: 15 Amp.
- VOLTAGE: 110V, 1 phase, 60 Hz
- DIMENSIONS (LXWXH) / WEIGHT5: 5-1/2″ x 24″ x 32″ / 328 lbs
