Description:
- 7 Amp. 10,800 RPM motor to give the power and speed to cut into the hardest wood
- Built-in dust extraction with dust bag
- Pre-set depth stops for quick and easy adjustment to common 0, 10, 20 biscuit sizes as well as simplex and duplex hardware
- Robust fence with 0 to 90° and 90° to 135° tilt adjustments with positive stops at 45° and 90°
- 45° location notch allows indexing off the outside of a mitered joint
- Precise micro height adjustment knob
- Trigger safety button prevents accidental starts

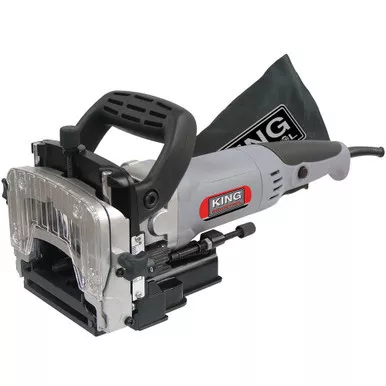

- Kit includes biscuit joiner with 4″ carbide tipped blade, dust bag, hex. key and plastic carrying case
- Double insulation
Specifications:
- MAX. DEPTH OF CUT AT 0°: 3/4″ (13 mm)
- BLADE DIAMETER: 4″ (100 mm)
- ARBOR SIZE: 7/8″ (22 mm)
- NO LOAD SPEED (RPM): 10,800
- MOTOR: 7 Amp.
- VOLTAGE: 120V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 15″ x 7-1/4″ x 6-3/4″ / 8 lbs
- PACKAGE DIMENSIONS (LXWXH) / WEIGHT: 16-1/4″ x 7-3/8″ x 10″ / 11.5 lbs
