Description:

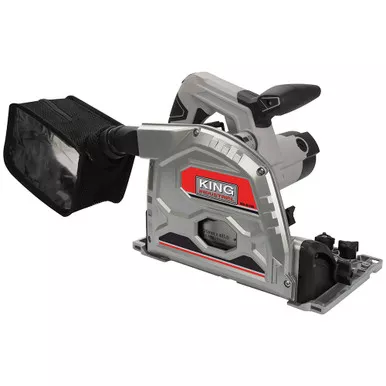

- Plunge Cut Track Saw is ideal for smooth cutting of solid wood and plywood, especially when combined with the optional 50″ track model KW-300
- Powerful 12 Amp. 120V variable speed “soft-start” motor with “constant torque” technology
- Depth stop feature for splinter-free cuts
- Safety features include fully enclosed blade and anti-kickback control (when used with optional 50″ track)
- Flat blade housing design allows wall cuts at 11/16″ from the wall
- Mode selector enables fast and easy setting of major functions, such as blade removal, free plunge cutting and scribe/scoring cut at 0.1″ deep
- Comes with efficient 1L dust management system, dust bag, dust chute, set of carbon brushes and hex. key with on cord storage
- *** This Plunge Cut Track Saw accepts Makita®, Dewalt®, Kreg® or Festool® 6-1/2″ x 20 mm arbor blades. ***
- *** Optional track (KW-300) and Clamps kit (KW-303) are compatible with Makita® and Dewalt® Track Saws. ***
Specifications:
- MODEL – KC-8365
- BLADE DIAMETER – 6-1/2″
- BLADE ARBOR / BLADE THICKNESS – 20mm / 2.2mm
- CUT CAPACITY @ 90Ëš (WITHOUT TRACK / WITH) – 2-5/16″ / 2-1/8″
- CUT CAPACITY @ 45Ëš (WITHOUT TRACK / WITH) – 1-21/32″ / 1-1/2″
- BEVEL ANGLE CAPACITY – 0Ëš to 48Ëš
- VARIABLE SPEED RANGE – 2,000 – 6,000 RPM
- MOTOR – 12 Amp.
- VOLTAGE – 120V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT – 23″ x 9″ x 9-5/8″ / 12 lbs
- PACKAGE DIMENSIONS (LXWXH) / WEIGHT – 13-1/4″ x 10-1/8″ x 11-5/8″ / 14 lbs
- UPC – 7 72995 01729 4
