Description:

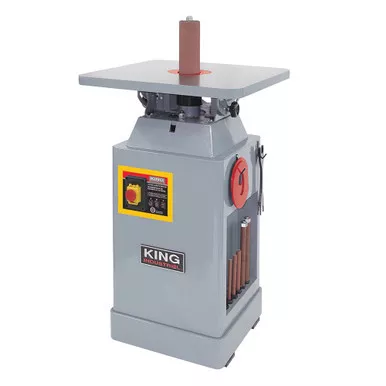

- Designed for intricate contour sanding operations
- 2 Step activation safety switch with line voltage interruption in case of power failure
- Heavy-duty cast-iron tilting table is precision ground
- 1″ to 4″ rubber drums can be fitted on both ends for full use of the entire spindle
- 4″ Dust chute for dust collector hook-up
- Heavy-duty oil bath gearbox with oil level sight gauge
- 10 interchangeable spindles (1/4″ x 5″, 3/8″ x 6″, 1/2″ x 6″, 5/8″ x 6″, 3/4″ x 9″, 1″ x 9″, 1-1/2″ x 9″, 2″ x 9″, 3″ x 9″ and 4″ x 9″)
- Includes 3 interchangeable table inserts and adjustment keys
Specifications:
- OSCILLATIONS PER MINUTE: 75
- OSCILLATIONS STROKE: 1-1/2″
- SPINDLE DRUM LENGTH: 10 (5″ to 9″)
- SPINDLE DRUM DIAMETER: 1/4″ to 4″
- SPINDLE SPEEDS: 1,725 RPM
- TABLE SIZE: 24-1/4″ x 24-1/4″
- MOTOR: 10 Amp. @ 110V, 5 Amp. @ 220V
- VOLTAGE: 110/220V, 1 phase, 60 Hz
- PRE-WIRED AT: 110V
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 24-1/4″ x 24-1/4″ x 47-1/4″ / 285 lbs
