Description:

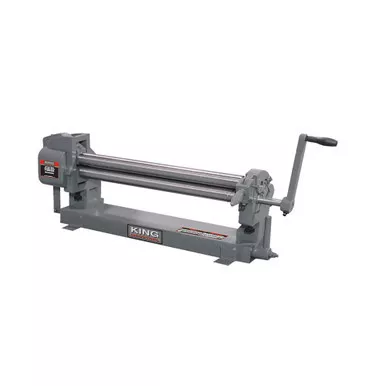

- Heavy cast-iron construction with front mounted handle for easy placement and release of workpiece
- Precision-turned tool steel rolls with wire grooves are ground and polished to offer accuracy and stability
- Hardened steel gearing
- Large roll adjusting screws facilitate lifting the upper roll for easy removal of material
Specifications:
- MAXIMUM LENGTH: 24″
- CAPACITY (MILD STEEL): 22 Gauge
- DIAMETER OF ROLLS: 2″
- MINIMUM FORMING RADIUS: 3/4″
- WIRE GROOVE DIAMETERS: 5/32″, 15/64″, 5/16″
- GEARING RATIO: 1:1
- ASSEMBLED DIMENSIONS (LXWXH) /WEIGHT: 39″ x 11″ x 15″ / 81 lbs
- PACKAGING DIMENSIONS (LXWXH) / WEIGHT: 37-3/8″ x 10-5/8″ x 15″ / 88 lbs
