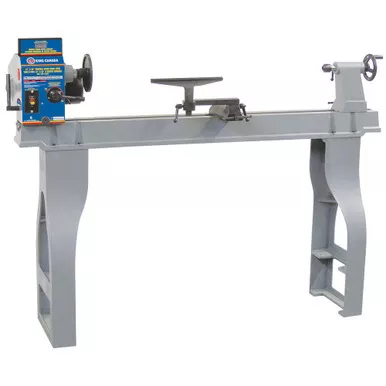

Description:
- Heavy-duty precision cast iron bed and stand legs ensure stability and minimize operating vibrations
- Spindle tachometer with digital readout
- Variable speed from 600 – 2,400 RPM
- Pivoting headstock turns 180° and locks into position for outboard turning
- Quick release headstock, tailstock and tool rest assembly for easy adjustments
- Comes complete with 6″ face plate, 12″ tool rest with offset and base, MT2 headstock and tailstock centres and adjustment wrenches
Specifications:
- SWING: 14-1/2″
- DISTANCE BETWEEN CENTRES: 43″
- SPINDLE SIZE: 1″ x 8 TPI
- SPINDLE BORE: 3/8′
- SPINDLE SPEEDS: 600-2,400 RPM
- HEADSTOCK AND TAILSTOCK TAPER : MT 2
- MOTOR: 6.6 Amp.
- VOLTAGE: 110V, 1 phase, 60 Hz
- DIMENSIONS (LXWXH) / WEIGHT: 62″ x 14-1/2″ x 48″ / 310 lbs
