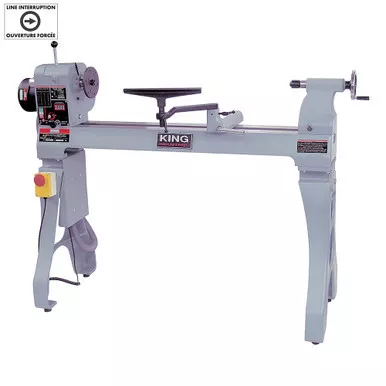

King Canada KWL-1643ABC – 16″ X 43″ Wood Lathe With Electronic Variable Speed

Description:

• Powerful 2 HP, 220V, 3 phase motor with 110V, single phase input power converter
• Heavy-duty precision cast iron bed and stand legs ensure stability and minimize operating vibrations
• Electronic inverter controls the variable speed range from 45 – 3,750 RPM
• Headstock swivels 360° with positive stops at 45°, 90°, 135°, 180° and 270° for outboard turning
• Spindle speed digital readout for precise turning speed
• Emergency stop switch with magnetic backing can be positioned anywhere on the cast iron bed
• Forward/reverse spindle rotation
• 36 x 10° indexing positions
• Comes complete with 6″ face plate, 14″ tool rest with offset and base, MT2 headstock spur and tailstock live centres, knock out bar and adjustment wrenches

Specifications:

• SWING OVER BED: 16″
• SPINDLE SIZE: 1-1/4″ x 8 TPI
• SPINDLE BORE: 3/8″
• DISTANCE BETWEEN CENTRES: 43″
• SPINDLE SPEEDS: 3 (45-1,000 / 85-2,000 / 150-3,750) RPM
• HEADSTOCK AND TAILSTOCK TAPER : MT 2
• MOTOR: 2 HP, 220V, 6.2 Amp., 3 phase, 60Hz
• INPUT POWER: 110V, 1 phase, 60Hz
• ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 63-1/2″ x 22-1/4″ x 52-1/2″ / 418 lbs
