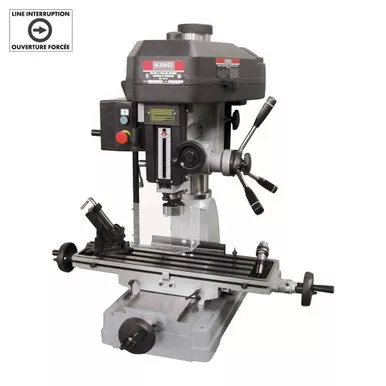

Description:
- Safety guard with limit switch protection
- Magnetic line interruption switch needs a restart after a power failure
- Spindle is equipped with four heavy-duty tapered roller bearings
- Table control hand wheels have large micrometer dials graduated in .001″
- Head swivels 360° and is easily raised and lowered
- Comes with 3″ face cutter, 1/2″ chuck with key, 3-1/2″ angle vise and safety guard
Specifications:
- DRILLING CAPACITY: 1-1/4″
- MAX. DIST. SPINDLE NOSE TO TABLE: 18-7/8″
- SWING: 16-1/2″
- SPINDLE TAPER: R8
- SPINDLE STROKE: 5″
- END MILL CAPACITY: 3/4″
- MAX. LONGITUDINAL TRAVEL: 17″
- CROSS TRAVEL: 7-1/4″
- WORKING AREA OF TABLE: 8-1/4″ x 28-3/4″
- SIZE OF T-SLOT ON TABLE: 5/8″ MOTOR11 Amp.
