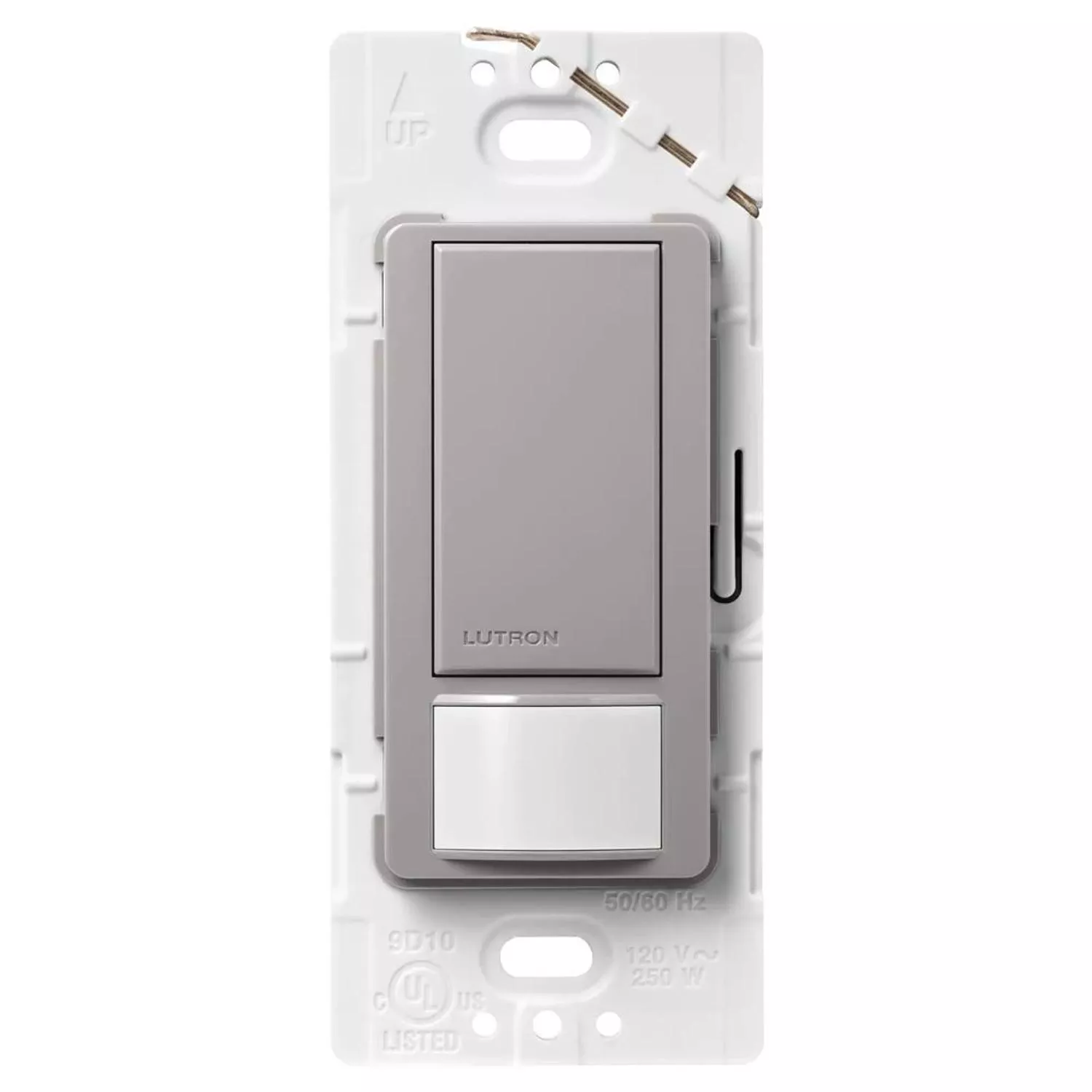

Single-circuit PIR occupancy/vacancy sensor switch. All models feature Lutron exclusive XCT technology. Adjustable timeout – 1, 5, 15, or 30 minutes. Occupancy/vacancy version can be easily programmed to work as vacancy (manual-on) sensor. High-low sensitivity adjustment. 2 A rated for: incandescent/halogen, magnetic low-voltage, electronic low-voltage, fluorescents, CFLs, and LEDs.
Includes (1) Lutron Maestro 2A Motion Sensor Switch; Gloss Finish
Rated to work with up to 2A lighting; 120V
Single Pole only
Wire-Lead installation; Ground or Neutral Required
Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens
Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough natural light is present in the room
Easy button programming to customize timeout, sensor mode, or sensitivity
Complies with Title 20/24 Section 110.9 for “automatic shutoff”
Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
Specifications
Brand Name
Lutron
Sub Brand
Maestro
Type
Single Circuit
Mounting Type
Wallbox
Standards
UL, cUL, NOM
Application
Lighting Control
UPC
027557982641
Packages
