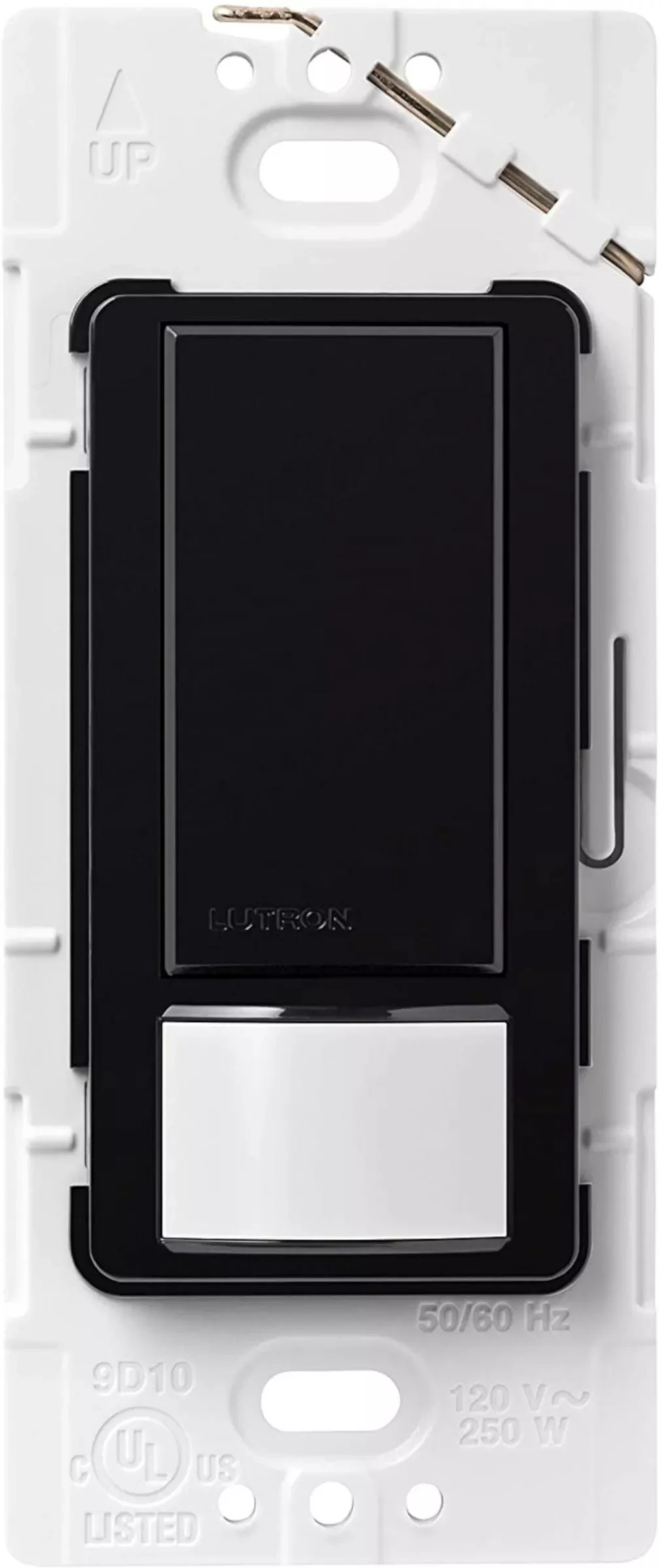

The Lutron Maestro Occupancy sensing switch combines a Maestro switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly.
Includes (1) Lutron Maestro 2A Motion Sensor Switch; Gloss Finish
Rated to work with up to 2A lighting; 120V
Single Pole only
Wire-Lead installation; Ground or Neutral Required
Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens
Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough natural light is present in the room
Easy button programming to customize timeout, sensor mode, or sensitivity
Complies with Title 20/24 Section 110.9 for “automatic shutoff”
Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
Specifications
Brand Name
Lutron
Sub Brand
Maestro
Item Name
Occupancy Sensor Switch
Type
Occupancy Sensor Switch,Single-pole
Voltage Rating
120 V
Amperage Rating
2 A
Number of Poles
1
Sensor Type
Passive Infrared
Viewing Angle
180°
Coverage Area
900 ft² Major Motion, 400 ft² Minor Motion
Color
Black
Mounting Type
Wallbox
Material
Plastic
Temperature Rating
0 – 40 °C Operating
Standards
UL, cUL Listed, NOM Certified
Application
For Lighting Control
UPC
027557982597
