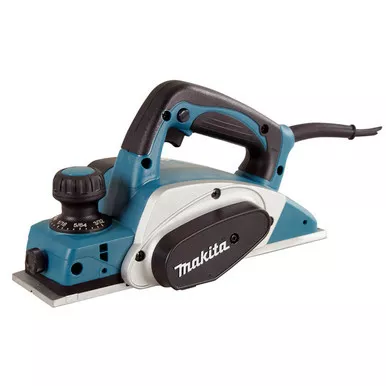

Features & Benefits:
- Lightweight Design For Easy Surface Planing
- Base Plate Foot protects materials and blade from damage
- Single Chamfering Groove enables quick and easy chamfering of corners
- Depth Adjustment Knob with Click Stops for precision planing applications
- Lock-On Button enables easy continuous operation and can be operated from left or right side
- Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation
Specifications:
- Maximum Capacities:
- Planing Width –3-1/4″ (82 mm)
- Planing Depth –0-3/32″ (0 – 2.5 mm)
- Shiplapping –0 – 11/32″ (0 – 9 mm)
- No Load Speed –17,000 RPM
- AMPS (120V) –6.5 A
- Vibration Level –2.5 m/s2
- Noise Level –89 dB(A)
- Overall Length –11-1/4″ (285 mm)
- Net Weight –5.7 lbs (2.6 kg)
Standard Equipment:
3-1/4″ Double Edged Mini Planer Blades (D-16966), Blade Gauge Assembly (123010-1), Socket Wrench 9 (782209-3), Guide Rule (195055-9)
